SKU: 6316-2Z/VA208-SKF

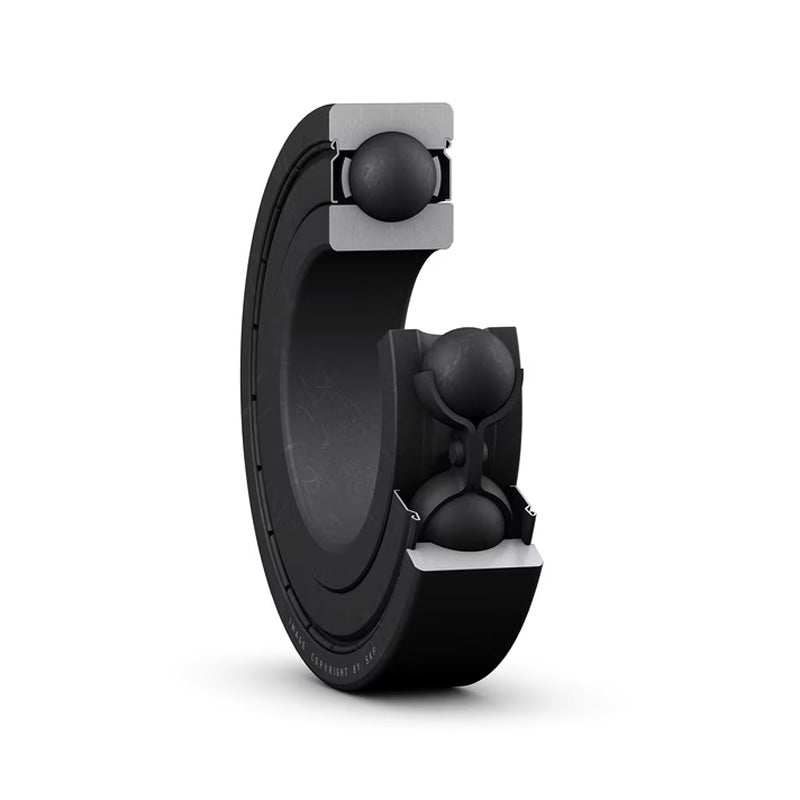

SKF 63162ZVA208 Single Row Deep Groove Ball Bearing High Temperature Type 80x170x39mm
SKF 63162ZVA208 Single Row Deep Groove Ball Bearing High Temperature Type 80x170x39mm
Regular price
€699,98
ex VAT
Regular price
Sale price
€699,98
ex VAT
In stock
Price Break
10+
€533,10
19+
€503,15
29+
€497,16
39+
€491,17
49+
€485,18
74+
€479,19
99+
€449,24
199+
€443,25
249+
€437,26
499+
€431,27
999+
€419,29
Share this product
Description
Description
|
SKF VA208 Series High Temperature Bearings: Supplied metal shielded are designed for high temperatures up to + 350 degrees Celsius and down to - 150 degrees Celsius. At temperatures over + 200 dry lubrication pertains. Designed for speeds up to 100rpm without maintenance. Internal clearance is C5 and all have a BLACK PHOSPHATED COATING Benefits: High temperature resilience, low maintenance |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 80mm
- Outside Diameter:
- 170mm
- Width:
- 39mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- * Standard
Technical
Technical
| d | 80mm |
|---|---|
| D | 170mm |
| B | 39mm |
| d1 | 108mm |
| D2 | 147mm |
| r1r2 | 2.1mm |
| Basic load rating Co | 86.5 kN |
| Weight | 3.55 kg |
| Max operating temp | +250 deg C |
| Min operating temp | -40 deg C |
| Recommended max speed | 100 rpm |
