SKU: 6318-2Z/C3-SKF

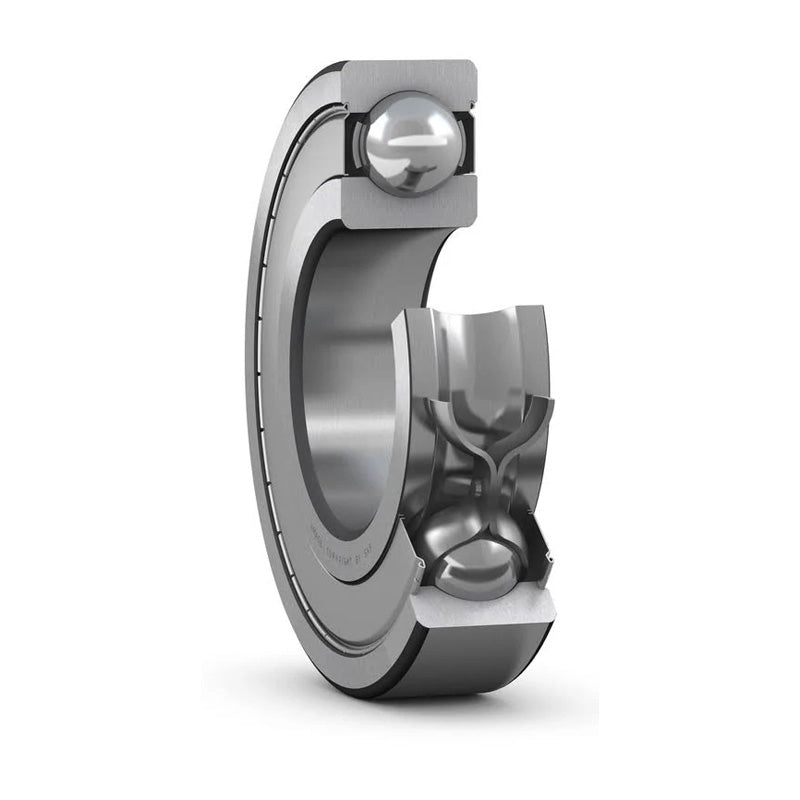

SKF 63182ZC3 Metal Shielded Deep Groove Ball Bearing 90x190x43mm
SKF 63182ZC3 Metal Shielded Deep Groove Ball Bearing 90x190x43mm
Regular price
€229,63
ex VAT
Regular price
Sale price
€229,63
ex VAT
Equivalent to: 6318ZZEC3 6318ZZC3 6318.2ZC3 6318KDDC3 6318DDC3 63182ZRC3 6318FFC3
In stock
Price Break
4+
€174,89
10+
€165,06
20+
€163,10
30+
€161,13
50+
€159,17
75+
€157,20
100+
€147,38
200+
€145,41
250+
€143,45
500+
€141,48
1000+
€137,55
Share this product
Description
Description
|
Metal Shielded Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with metal shields inserted into the outer raceway, these fit in closely to the inner race providing protection against light mechanical damage, some protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
Equivalent: 6318ZZEC3 6318ZZC3 6318.2ZC3 6318KDDC3 6318DDC3 63182ZRC3 6318FFC3
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 90mm
- Outside Diameter:
- 190mm
- Width:
- 43mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- C3
Technical
Technical
| d | 90mm |
|---|---|
| D | 190mm |
| B | 43mm |
| Dynamic load C | 151 kN |
| Static load Co | 108 kN |
| Fatigue load limit Pu | 3.8 kN |
| Reference speed | 7500 rpm |
| Limiting speed | 3800 rpm |
| Weight | 4.9 kg |
| d1 | 121mm |
| d2 | 0mm |
| D2 | 164mm |
| r1r2 min | 3mm |
| da min | 104mm |
| da max | 0mm |
| Da max | 176mm |
| ra max | 2.5mm |
| Calculation factor kr | 0.03 |
| Calculation factor f0 | 13 |
