SKU: 6319/C3VL0241-SKF

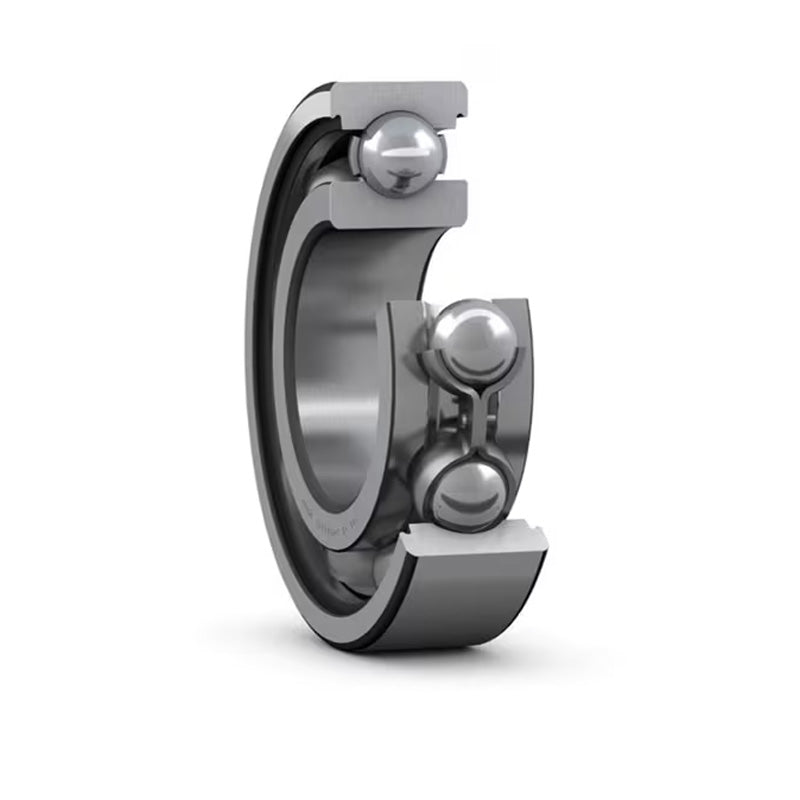

SKF 6319C3VL0241 Insocoat Deep Groove Ball Bearing 85x200x45mm
SKF 6319C3VL0241 Insocoat Deep Groove Ball Bearing 85x200x45mm
Regular price
€1.336,60
ex VAT
Regular price
Sale price
€1.336,60
ex VAT
In stock
Price Break
10+
€1.017,96
19+
€960,77
29+
€949,33
39+
€937,89
49+
€926,46
74+
€915,02
99+
€857,83
199+
€846,39
249+
€834,95
499+
€823,52
999+
€800,64
Share this product
Description
Description
|
SKF Insocoat Bearings: Special application bearings that are electrically insulated and capable of withstanding voltages up to 1000v, a layer of aluminium oxide (100µm thickness) Benefits: Electrically insulated |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 85mm
- Outside Diameter:
- 200mm
- Width:
- 45mm
- Seals / Shields:
- None
- Clearance:
- C3
Technical
Technical
| d | 85mm |
|---|---|
| D | 200mm |
| B | 45mm |
| Dynamic load Cr | 153 kN |
| Static load Cor | 118 kN |
| Fatigue load limit Pu | 4.15 kN |
| Reference speed | 7000 rpm |
| Limiting speed | 4500 rpm |
| Weight | 5.65 kg |
| d1 | 127mm |
| D1 | 169mm |
| D2 | 174mm |
| r1r2 min | 3mm |
| da min | 109mm |
| Da min | 179mm |
| Da max | 186mm |
| ra max | 2.5mm |
| kr | 0.03 |
| fo | 13 |
