SKU: 6330/C3VL2071-SKF

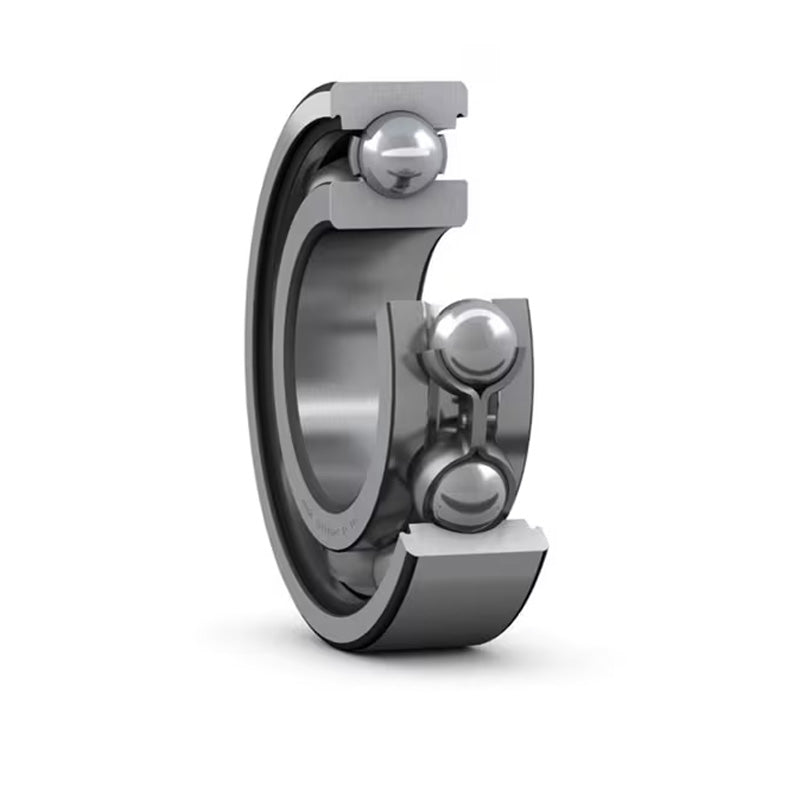

SKF 6330C3VL2071 Insocoat Deep Groove Ball Bearing 150x320x65mm
SKF 6330C3VL2071 Insocoat Deep Groove Ball Bearing 150x320x65mm
Regular price
€3.734,68
ex VAT
Regular price
Sale price
€3.734,68
ex VAT
In stock
Price Break
10+
€3.323,87
19+
€3.137,13
29+
€3.099,78
39+
€3.062,44
49+
€3.025,09
74+
€2.987,74
99+
€2.801,01
199+
€2.763,66
249+
€2.726,32
499+
€2.688,97
999+
€2.614,28
Couldn't load pickup availability
Description
Description
|
SKF Insocoat Bearings: Special application bearings that are electrically insulated and capable of withstanding voltages up to 1000v, a layer of aluminium oxide (100µm thickness) Benefits: Electrically insulated |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 150mm
- Outside Diameter:
- 320mm
- Width:
- 65mm
- Seals / Shields:
- None
- Clearance:
- C3
Technical
Technical
| d | 150mm |
|---|---|
| D | 320mm |
| B | 65mm |
| Dynamic load Cr | 276 kN |
| Static load Cor | 285 kN |
| Fatigue load limit Pu | 7.8 kN |
| Reference speed | 4300 rpm |
| Limiting speed | 4000 rpm |
| Weight | 22.8 kg |
| d1 | 206mm |
| D1 | 265mm |
| r1r2 min | 4mm |
| da min | 167mm |
| da max | 200mm |
| Da max | 303mm |
| ra max | 3mm |
| kr | 0.03 |
| fo | 14 |
