SKU: 6411NR-SKF

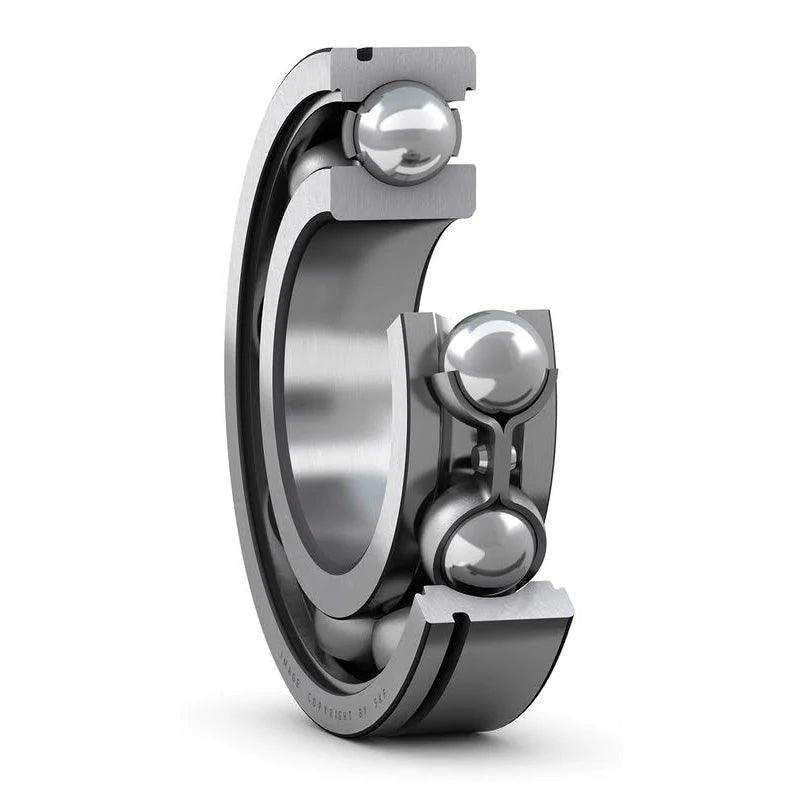

SKF 6411NR Open Type Snap Ring Deep Groove Bearing 55x140x33mm
SKF 6411NR Open Type Snap Ring Deep Groove Bearing 55x140x33mm
Regular price
€387,26
ex VAT
Regular price
Sale price
€387,26
ex VAT
In stock
Price Break
4+
€294,94
10+
€278,37
20+
€275,06
30+
€271,74
50+
€268,43
75+
€265,11
100+
€248,55
200+
€245,23
250+
€241,92
500+
€238,60
1000+
€231,98
Description
Description
|
Deep Groove Ball Bearings with Snap Ring: A popular choice where the housings is part of a machine frame casing, these bearing types are manufactured without seals to allow the circulation of the oil or grease lubricant. The snap ring is made from a spring steel material and fits into an annular groove around the outside of the bearing which is offset to one side. |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 55mm
- Outside Diameter:
- 140mm
- Width:
- 33mm
- Seals / Shields:
- None
- Clearance:
- * Standard
- Snap Ring:
- Snap Ring
Technical
Technical
| d | 55mm |
|---|---|
| D | 140mm |
| B | 33mm |
| Dynamic load C | 99.5 kN |
| Static load Co | 62 kN |
| Fatigue load limit Pu | 2.6 kN |
| Reference speed | 11000 rpm |
| Limiting speed | 7000 rpm |
| Weight | 2.35kg |
| Snap ring | SP 140 |
| d1 | 81.5mm |
| D2 | 114mm |
| D3 | 135.23mm |
| D4 | 149.7mm |
| b | 3.1mm |
| f | 2.82mm |
| C | 4.9mm |
| r1r2 min | 2.1mm |
| ro max | 0.6mm |
| da min | 69mm |
| Da max | 126mm |
| Db min | 151mm |
| ba min | 3.5mm |
| Ca max | 7.72mm |
| ra max | 2mm |
| Calc Factor kr | 0.035 |
| fo | 12 |
