SKU: 6413NR/C3-SKF

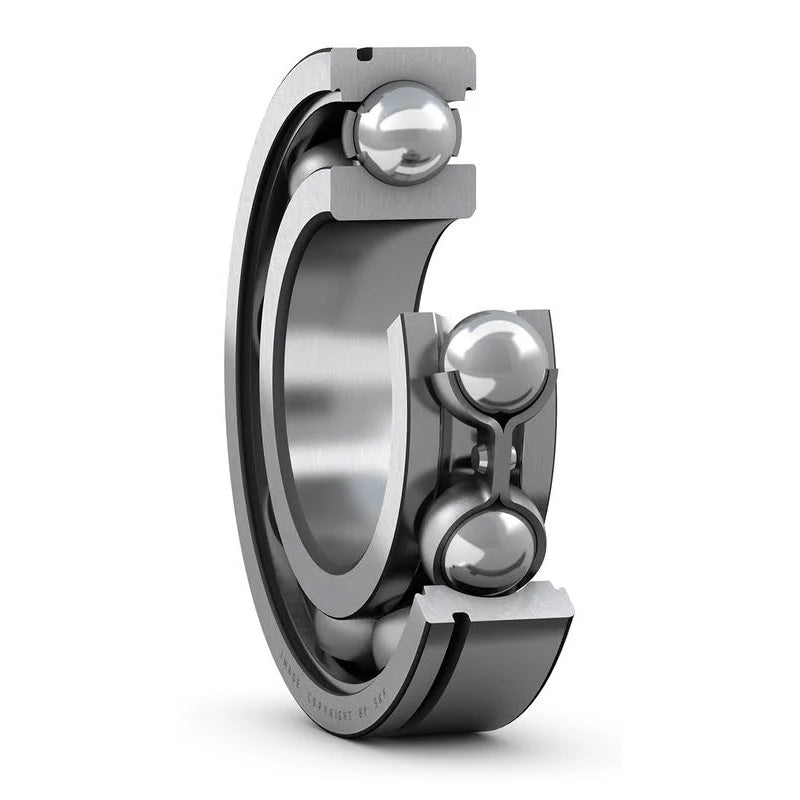

SKF 6413NRC3 Open Type Snap Ring Deep Groove Bearing 65x160x37mm
SKF 6413NRC3 Open Type Snap Ring Deep Groove Bearing 65x160x37mm
Regular price
€550,78
ex VAT
Regular price
Sale price
€550,78
ex VAT
In stock
Price Break
4+
€419,47
10+
€395,91
20+
€391,19
30+
€386,48
50+
€381,77
75+
€377,05
100+
€353,49
200+
€348,77
250+
€344,06
500+
€339,35
1000+
€329,92
Description
Description
|
Deep Groove Ball Bearings with Snap Ring: A popular choice where the housings is part of a machine frame casing, these bearing types are manufactured without seals to allow the circulation of the oil or grease lubricant. The snap ring is made from a spring steel material and fits into an annular groove around the outside of the bearing which is offset to one side. |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 65mm
- Outside Diameter:
- 160mm
- Width:
- 37mm
- Seals / Shields:
- None
- Clearance:
- C3
- Snap Ring:
- Snap Ring
Technical
Technical
| d | 65mm |
|---|---|
| D | 160mm |
| B | 37mm |
| Dynamic load C | 119 kN |
| Static load Co | 78 kN |
| Fatigue load limit Pu | 3.15 kN |
| Reference speed | 9500 rpm |
| Limiting speed | 6000 rpm |
| Weight | 3.35kg |
| Snap ring | SP 160 |
| d1 | 94mm |
| D2 | 131mm |
| D3 | 155.22mm |
| D4 | 169.7mm |
| b | 3.1mm |
| f | 2.82mm |
| C | 4.9mm |
| r1r2 min | 2.1mm |
| ro max | 0.6mm |
| da min | 79mm |
| Da max | 146mm |
| Db min | 172mm |
| ba min | 3.5mm |
| Ca max | 7.72mm |
| ra max | 2mm |
| Calc Factor kr | 0.035 |
| fo | 12 |
