SKU: 6912LLU/5K-NTN

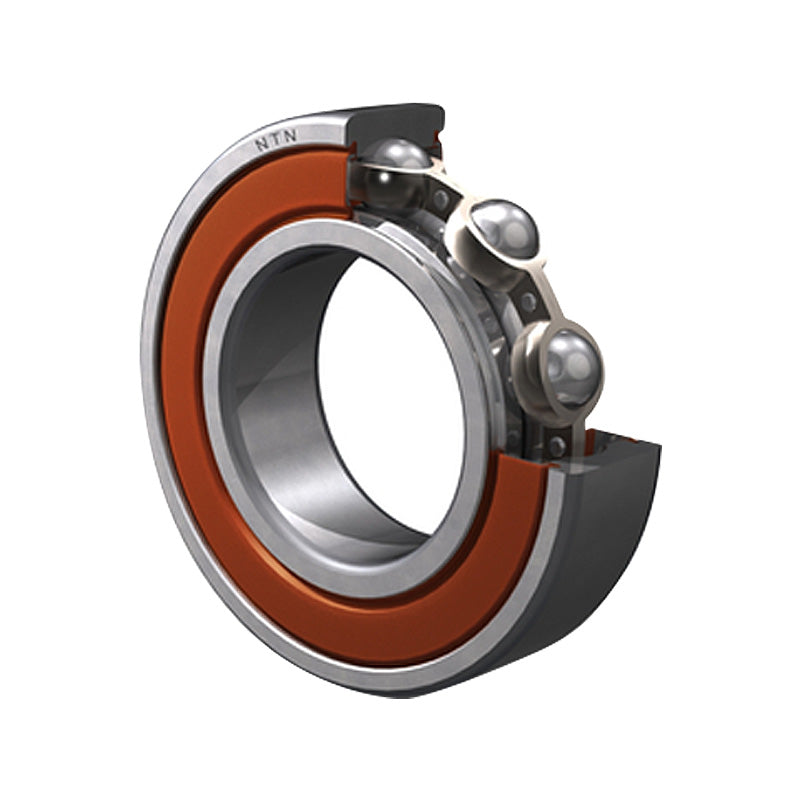

NTN 6912LLU/5K Contact Rubber Sealed Type Deep Groove Ball Bearing 60x85x13mm
Equivalent to: 6912LLUCM 61912LLUCM 6912LLU 61912LLU 6912NSE 6912DU 6912RS 6912RSH 6912P 6912RSR 6912LU 69122NSE 6912DDU 69122RS 6912-2RS 69122RS1 69122RSH 6912PP 69122RSR 6912LLU 6912RS2 69122RS2 69122RSL 6912LFS 6912EE 1912SZZ 6912DD AY602RS 9312NPP
In stock
Price Break
Share this product
Description
Contact Rubber Sealed Deep Groove Ball Bearings: These deep groove ball bearings can sustain radial, axial or composite loads and because of its simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This bearing has two contact rubber seals in contact with the inner ring.
Benefits: High-running accuracy and high-speed operation, excellent grease sealing at low speeds, excellent protection against dust and water.
Note: These bearings are supplied pre-filled with grease, "/5k" refers to the grease: Multemp SRL (-40 deg C to +150 deg C)
Equivalent: 6912LLUCM 61912LLUCM 6912LLU 61912LLU 6912NSE 6912DU 6912RS 6912RSH 6912P 6912RSR 6912LU 69122NSE 6912DDU 69122RS 6912-2RS 69122RS1 69122RSH 6912PP 69122RSR 6912LLU 6912RS2 69122RS2 69122RSL 6912LFS 6912EE 1912SZZ 6912DD AY602RS 9312NPP
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 60mm
- Outside Diameter:
- 85mm
- Width:
- 13mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- * Standard
Technical
| --- | Bearing dimensions |
|---|---|
| d | 60mm |
| D | 85mm |
| B | 13mm |
| r<sub>s</sub> min | 1mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 18.2 kN |
| C<sub>or</sub> | 14.3 kN |
| C<sub>u</sub> | 0.965 kN |
| f<sub>0</sub> | 16.4 kN |
| Speed | 4300 rpm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 65mm |
| d<sub>a</sub> Max. | 66.5mm |
| D<sub>a</sub> Max. | 80mm |
| r<sub>as</sub> Max. | 1mm |
| Weight Kg | 0.193 kg |
