SKU: 7007UCDB/GNP4-NTN
NTN 7007UCDB/GNP4 Duplex Angular Contact Bearing 35x62x28mm
NTN 7007UCDB/GNP4 Duplex Angular Contact Bearing 35x62x28mm
Regular price
€150,83
ex VAT
Regular price
Sale price
€150,83
ex VAT
In stock
Price Break
10+
€114,87
19+
€108,42
29+
€107,13
39+
€105,84
49+
€104,55
74+
€103,26
99+
€96,80
199+
€95,51
249+
€94,22
499+
€92,93
999+
€90,35
Description
Description
Duplex Angular Contact Ball Bearing - Back to Back

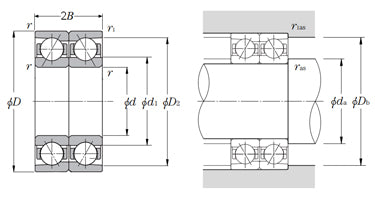

This bearing is manufactured as two angular contact ball bearings back to back. See schematic for further information.
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 35mm
- Outside Diameter:
- 62mm
- Width:
- 28mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 35mm |
|---|---|
| D | 62mm |
| B | 28 mm |
| 2B | 28mm |
| d1 | 44mm |
| d2 | 42mm |
| D1 | 52mm |
| D2 | 57mm |
| r | 1mm |
| r1 | 0.6mm |
| da min | 40.5mm |
| Da max | 56.5mm |
| Db max | 57.5mm |
| ras max | 1mm |
| r1as max | 0.6mm |
| Contact Angle | 15 ? |
| Limiting Speed - Oil | 30960 RPM |
| Limiting Speed - Grease | 19360 RPM |
| Material | High Carbon Chrome Steel |
| Cage Type | Fiber Glass Reinforced |
| Cage Material | Nylon |
| Ball Material | Steel |
| Temperature Range | -40 to 250 ?F-40 to 120 ?C |
