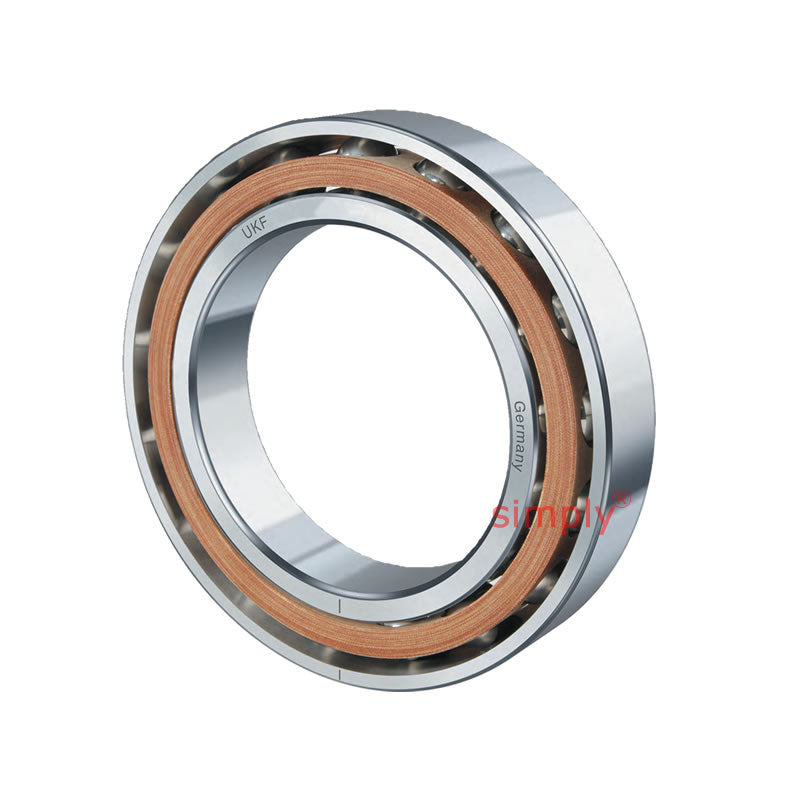

UKF 70USSC120A250IL Super Precision Single Row Angular Contact Spindle Bearing 120x180x28mm

Name: UKF 70USSC120A250IL Super Precision Single Row Angular Contact Spindle Bearing 120x180x28mm
Brand: UKF
SKU: 70USSC120 .A25.0/I.L-UKF
Price: 818.27 EUR
Availability: InStock

€818,27 ex VAT

Sale Sold out

Equivalent to: 70USSC120 .A25.0/I.L

In stock

Price Break

3+ €623,20

5+ €588,18

10+ €581,18

25+ €574,18

49+ €567,18

74+ €560,18

99+ €525,16

199+ €518,16

249+ €511,16

499+ €504,16

999+ €490,15

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Equivalent: 70USSC120 .A25.0/I.L

Brand / Quality:: UKF - High Quality
Inside Diameter:: 120mm
Outside Diameter:: 180mm
Width:: 28mm
Seals / Shields:: None
Style:: Single Row Angular Contact Spindle Bearing
Contact Angle:: 25 Degree contact angle
Bearing Preload:: Light preload

Technical

d	120mm
D	180mm
B	28mm
Dynamic load Co	58850 N
Static load C	73500 N
Speed in Grease	8400 rpm
Speed in Oil	12800 rpm
r<sub>a</sub>	1.5mm
d<sub>a</sub>	132mm
D<sub>a</sub>	168mm
Axial Preload F<sub>v</sub> L	730 N
Axial Preload F<sub>v</sub> M	2200 N
Axial Preload F<sub>v</sub> S	4400 N
Axial Rigidity R<sub>a</sub> L	247 N/μm
Axial Rigidity R<sub>a</sub> M	357 N/μm
Axial Rigidity R<sub>a</sub> S	449 N/μm
Radial Rigidity R<sub>r</sub> L	989 N/μm
Radial Rigidity R <sub>r</sub> M	1426 N/μm
Radial Rigidity <sub>r</sub> S	1794 N/μm
Weight	1.83 kg
