SKU: 7200BECBP-SKF

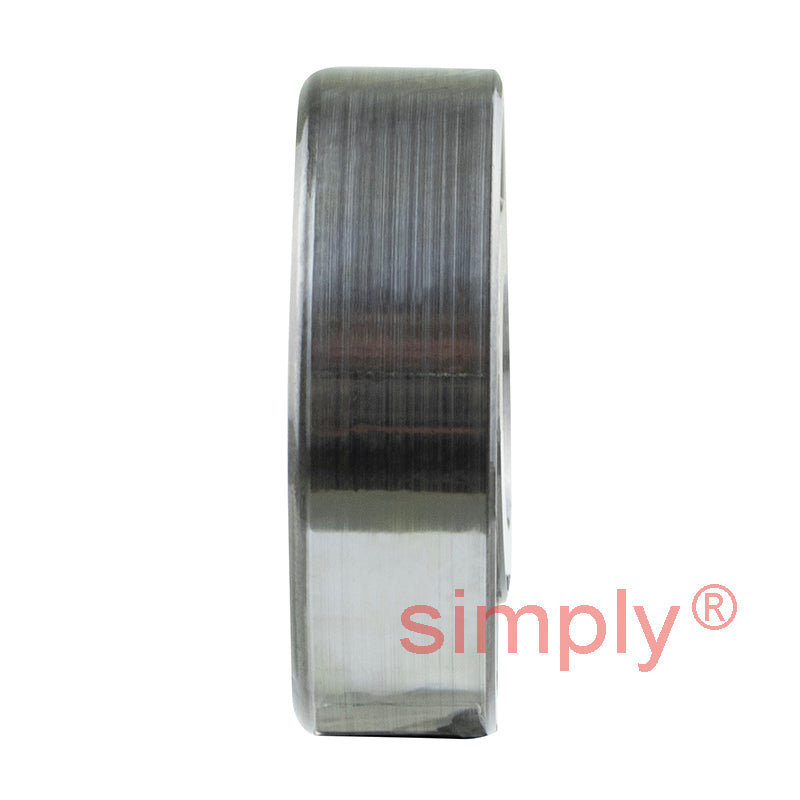

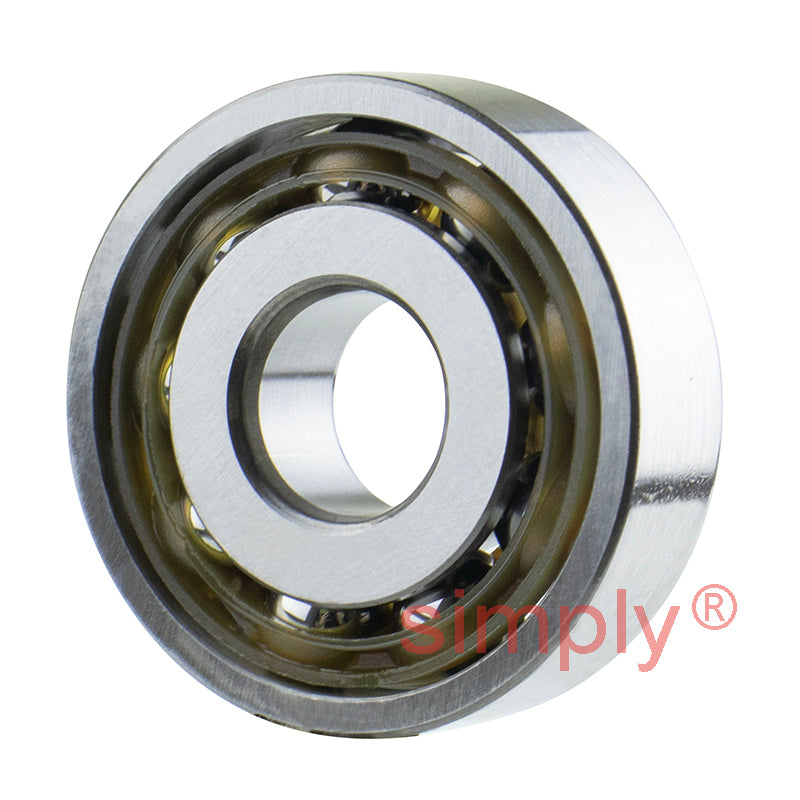

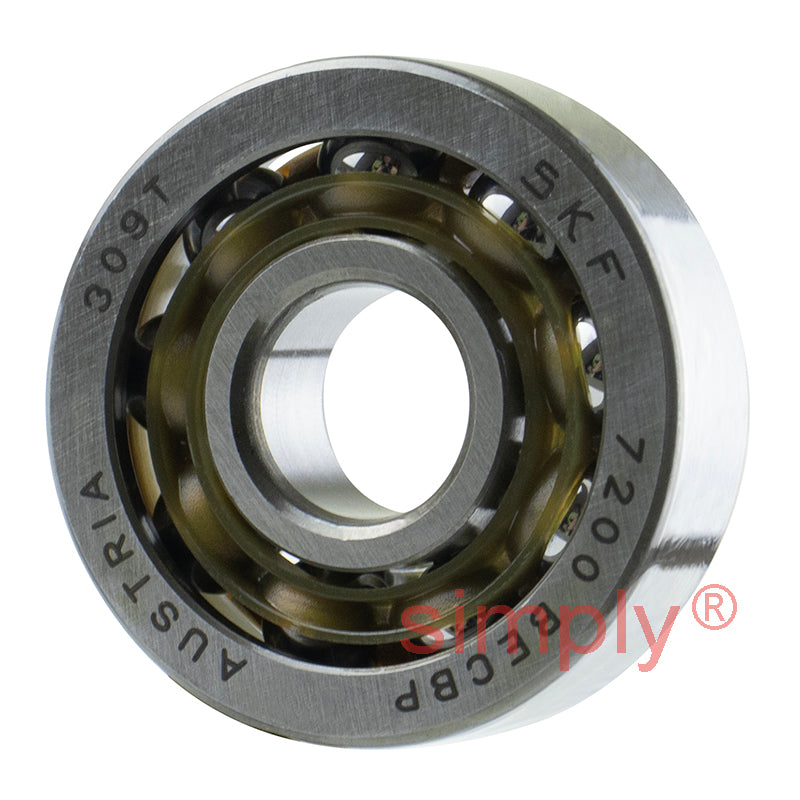

SKF 7200BECBP Single Row Angular Contact Ball Bearing 10x30x9mm
SKF 7200BECBP Single Row Angular Contact Ball Bearing 10x30x9mm
Regular price
€45,91
ex VAT
Regular price
Sale price
€45,91
ex VAT
Equivalent to: 7200BECBP
In stock
Price Break
4+
€34,97
8+
€33,00
12+
€32,61
16+
€32,22
25+
€31,82
50+
€31,43
99+
€29,47
199+
€29,07
249+
€28,68
499+
€28,29
999+
€27,50
Share this product
Description
Description
SKF Single Row Angular Contact Ball Bearings: These bearings have internal raceways that are effectively opposite each other, they are designed to accommodate both axial and radial loads and when used in pairs have a tremendous load bearing capacity.
Benefits: Compact, rigid, accommodates tilting, radial and axial loads
Equivalent: 7200BECBP
Benefits: Compact, rigid, accommodates tilting, radial and axial loads
Equivalent: 7200BECBP
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 10mm
- Outside Diameter:
- 30mm
- Width:
- 9mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 10mm |
|---|---|
| D | 30mm |
| B | 9mm |
| Dynamic load Cr | 7.02 kN |
| Static load Cor | 3.35 kN |
| Fatigue load limit Pu | 0.14 kN |
| Reference speed | 30000 rpm |
| Limit speed | 30000 rpm |
| Weight | 0.03 kg |
| d1 | 18.3mm |
| d2 | 14.6mm |
| D1 | 22.9mm |
| r1r2 min | 0.6mm |
| r3r4 min | 0.3mm |
| a | 13mm |
| da min | 14.2mm |
| Da max | 25.8mm |
| Db max | 27.6mm |
| ra max | 0.6mm |
| rb max | 0.3mm |
