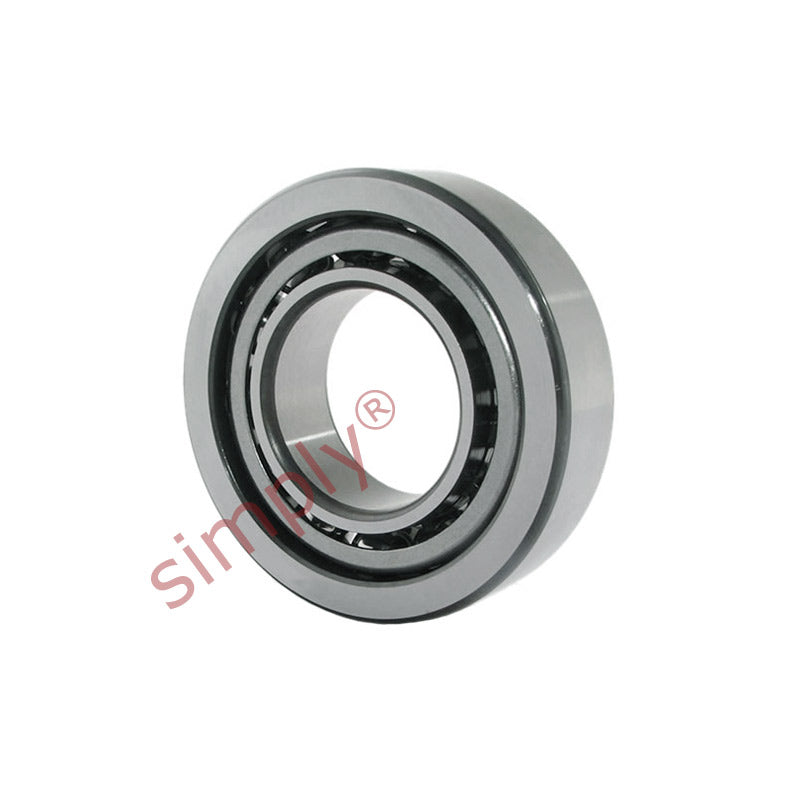

SKF 7211BECBP Single Row Angular Contact Ball Bearing 55x100x21mm
SKF 7211BECBP Single Row Angular Contact Ball Bearing 55x100x21mm
Regular price
€110,49
ex VAT
Regular price
Sale price
€110,49
ex VAT
Equivalent to: 7211BECBP
In stock
Price Break
10+
€98,34
19+
€92,81
29+
€91,71
39+
€90,60
49+
€89,50
74+
€88,39
99+
€82,87
199+
€81,76
249+
€80,66
499+
€79,55
999+
€77,34
Couldn't load pickup availability
Description
Description
SKF Single Row Angular Contact Ball Bearings: These bearings have internal raceways that are effectively opposite each other, they are designed to accommodate both axial and radial loads and when used in pairs have a tremendous load bearing capacity.
Benefits: Compact, rigid, accommodates tilting, radial and axial loads
Equivalent: 7211BECBP
Benefits: Compact, rigid, accommodates tilting, radial and axial loads
Equivalent: 7211BECBP
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 55mm
- Outside Diameter:
- 100mm
- Width:
- 21mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 55mm |
|---|---|
| D | 100mm |
| B | 21mm |
| Dynamic load Cr | 49 kN |
| Static load Cor | 40 kN |
| Fatigue load limit Pu | 1.66 kN |
| Reference speed | 8000 rpm |
| Limit speed | 8000 rpm |
| Weight | 0.62 kg |
| d1 | 72.7mm |
| d2 | 63.6mm |
| D1 | 83.3mm |
| r1r2 min | 1.5mm |
| r3r4 min | 1mm |
| a | 43mm |
| da min | 64mm |
| Da max | 91mm |
| Db max | 94mm |
| ra max | 1.5mm |
| rb max | 1mm |
