SKU: 7212BECBM-SKF

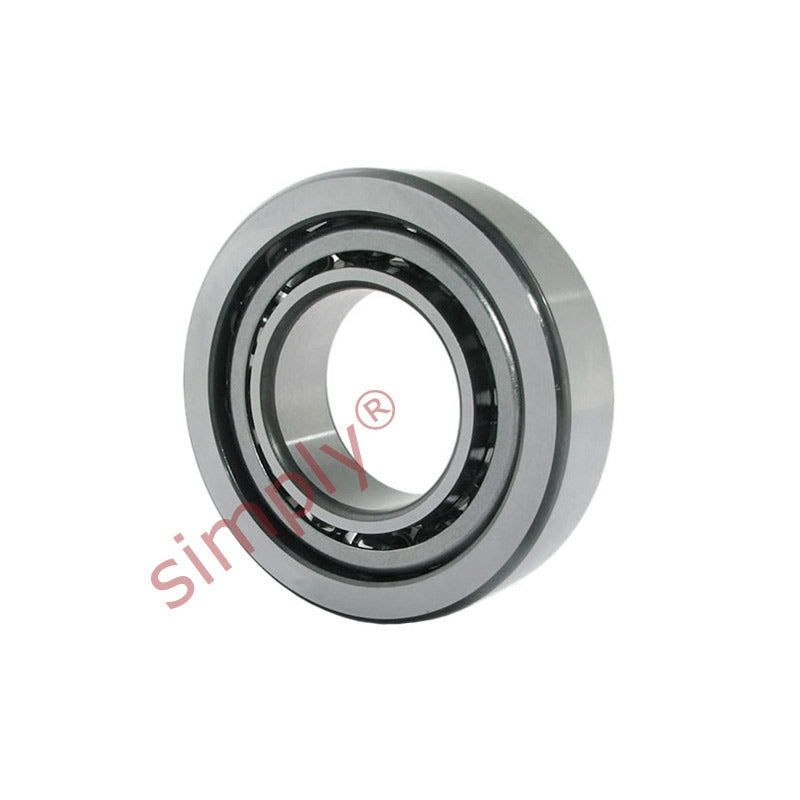

SKF 7212BECBM Single Row Angular Contact Ball Bearing 60x110x22mm
SKF 7212BECBM Single Row Angular Contact Ball Bearing 60x110x22mm
Regular price
€192,71
ex VAT
Regular price
Sale price
€192,71
ex VAT
Equivalent to: 7212BECBM
In stock
Price Break
10+
€171,51
19+
€161,88
29+
€159,95
39+
€158,02
49+
€156,10
74+
€154,17
99+
€144,53
199+
€142,61
249+
€140,68
499+
€138,75
999+
€134,90
Couldn't load pickup availability
Description
Description
SKF Single Row Angular Contact Ball Bearings: These bearings have internal raceways that are effectively opposite each other, they are designed to accommodate both axial and radial loads and when used in pairs have a tremendous load bearing capacity.
Benefits: Compact, rigid, accommodates tilting, radial and axial loads
Equivalent: 7212BECBM
Benefits: Compact, rigid, accommodates tilting, radial and axial loads
Equivalent: 7212BECBM
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 60mm
- Outside Diameter:
- 110mm
- Width:
- 22mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 60mm |
|---|---|
| D | 110mm |
| B | 22mm |
| Dynamic load Cr | 61 kN |
| Static load Cor | 50 kN |
| Fatigue load limit Pu | 2.12 kN |
| Reference speed | 7500 rpm |
| Limit speed | 7500 rpm |
| Weight | 0.85 kg |
| d1 | 79.6mm |
| d2 | 69.3mm |
| D1 | 91.6mm |
| r1r2 min | 1.5mm |
| r3r4 min | 1mm |
| a | 47mm |
| da min | 69mm |
| Da max | 101mm |
| Db max | 104mm |
| ra max | 1.5mm |
| rb max | 1mm |
