SKU: 7518-RBC

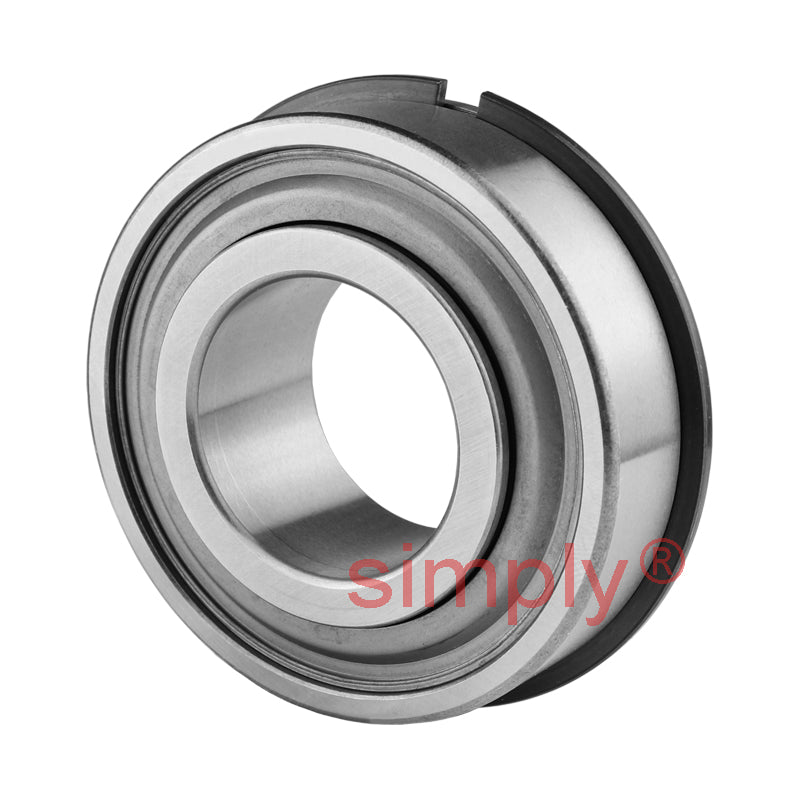

RBC 7518 Heavy Duty Precision Ground Rubber Sealed with Trash Guard Radial Bearing with Snap Ring 1.125x2.563x0.75 inch - Allow 2-3 Days
RBC 7518 Heavy Duty Precision Ground Rubber Sealed with Trash Guard Radial Bearing with Snap Ring 1.125x2.563x0.75 inch - Allow 2-3 Days
Regular price
€64,70
ex VAT
Regular price
Sale price
€64,70
ex VAT
Equivalent to: 7518/NR
In stock
Price Break
10+
€54,82
19+
€52,60
29+
€51,49
39+
€49,83
49+
€48,73
74+
€45,96
99+
€38,76
199+
€0,00
249+
€0,00
499+
€0,00
999+
€0,00
Description
Description
|
RBC NICE 7500 Heavy Duty Precision Ground Rubber Sealed with Trash Guard Radial Bearing with Snap Ring: Similar in construction to the 1600 Series™ bearings, the 7500 Series™ bearings incorporate an incredibly effective single lip contact seal which includes a metal trash guard. Both the inner and outer rings are machined from chrome steel, precise heat treatment and grinding brings the hardened rings within tolerance range. The 7500 Series™ bearings are recommended for use in any application where accuracy of rotation, near silent performance and precise adherence to exacting tolerances are a concern. The guarded seals ensure that lubricant is kept in while keeping dust and dirt out. Benefits: Double sealed 7500 Series™ bearings are grease packed as standard, and are all provided with a snap ring groove with a snap ring pre-assembled. |
Equivalent: 7518/NR
- Brand / Quality:
- RBC / Nice - High Quality
- Inside Diameter:
- 28.58mm = 1.125 (1-1/8) inch
- Outside Diameter:
- 65.09mm = 2.563 (2-9/16) inch
- Width:
- 19.05mm = 0.75 (3/4) inch
- Seals / Shields:
- Rubber Sealed
- Clearance:
- * Standard
- Snap Ring:
- Snap Ring
Technical
Technical
| Bore d | 1.125 inch = 28.58mm |
|---|---|
| Tolerance | +.0000/-.0005 |
| Outside Diameter D | 2.563 inch = 65.09mm |
| Tolerance | +.0000/-.0005 |
| Width B | 0.75 inch = 19.05mm |
| Tolerance | +.000/-.005 |
| A | 0.0625 inch = 1.59mm |
| Inner Width C | 0.875 inch = 22.23mm |
| Tolerance | +.000/-.005 |
| F | 1.672 inch = 42.47mm |
| G | 0.19 inch = 4.83mm |
| Tolerance | +.000/- .005 |
| H | 0.065 inch = 1.65mm |
| J | 2.7656 inch = 70.25mm |
| Radius R | 0.035 inch = 0.89mm |
| Dynamic C | 23852N |
| Static Co | 11659N |
| da min | 1.375 inch = 34.93mm |
| Da max | 2.312 inch = 58.72mm |
| r max | 0.035 inch = 0.89mm |
