SKU: 7907UADG/GMP42-NTN

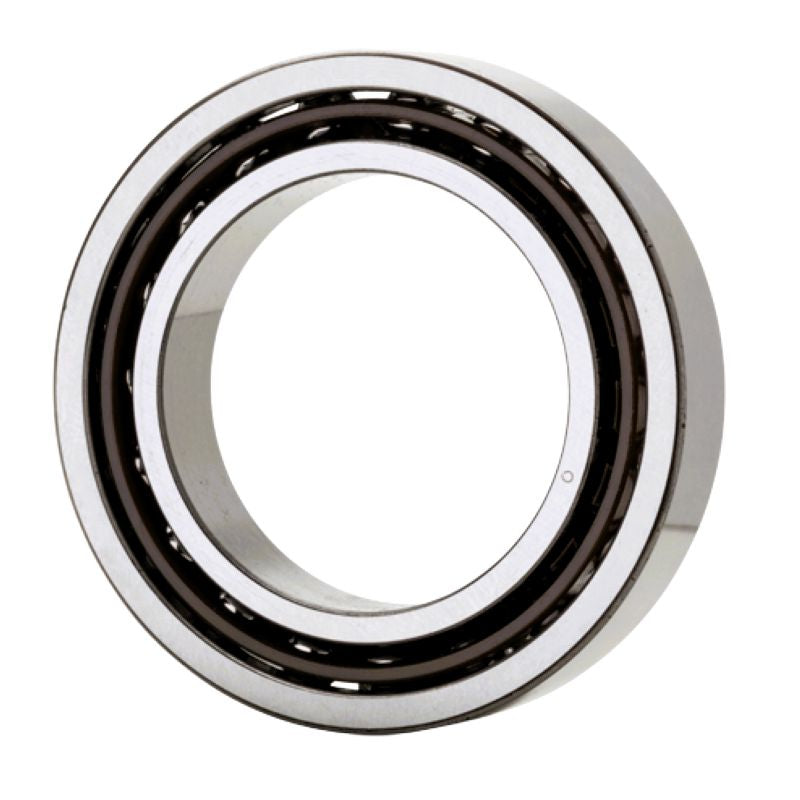

NTN 7907UADG/GMP42 Super Pricision Single Row Angular Contact Ball Bearing 35x55x10mm - Allow 2-3 Days

NTN 7907UADG/GMP42 Super Pricision Single Row Angular Contact Ball Bearing 35x55x10mm - Allow 2-3 Days
Regular price €155,36 ex VAT
Regular price Sale price €155,36 ex VAT
Sale Sold out

Equivalent to: 7907UADG/GMP42U3G

In stock

Price Break
10+ €131,62
19+ €126,30
29+ €123,64
39+ €119,66
49+ €117,00
74+ €110,35
99+ €93,07
199+ €0,00
249+ €0,00
499+ €0,00
999+ €0,00
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
d - Inside diameter 35mm
D - Outside diameter 55mm
B - Width 10mm
d1 - Inner ring outside diameter 41.6mm
d2 - Inner ring outside diameter 39.9mm
D1 - Inner ring inside diameter 48.4mm
D2 - Inner ring inside diameter 51.7mm
a - Charge load application point 15.6mm
Contact angle 25 degrees
rs min - Minimum fillet radius 0.6mm
r1s min - Minimum fillet radius 0.3mm
Precision class P42
C - Dynamic load rating 14.4 kN
C0 - Static load rating 9.75 kN
f0 - Coefficient 15.7
Preload level GM
Preload value 255 N
N Lim - Oil limiting speed 36400 tr/min
N Lim - Grease limiting speed 22600 tr/min
da min - Inner ring minimum shoulder diameter 39.5mm
Da max - Outer ring maximum shoulder diameter 50.5mm
Db max - Outer ring maximum shoulder diameter 52.5mm
r1a max - Maximum fillet radius 0.3mm
ra max - Maximum shaft & housing fillet radius 0.6mm
Tmin - Minimum operating temperature -20 Deg C
Tmax - Maximum operating temperature +120 Deg C
