SKU: 7E-HMK1725CT/8A-NTN

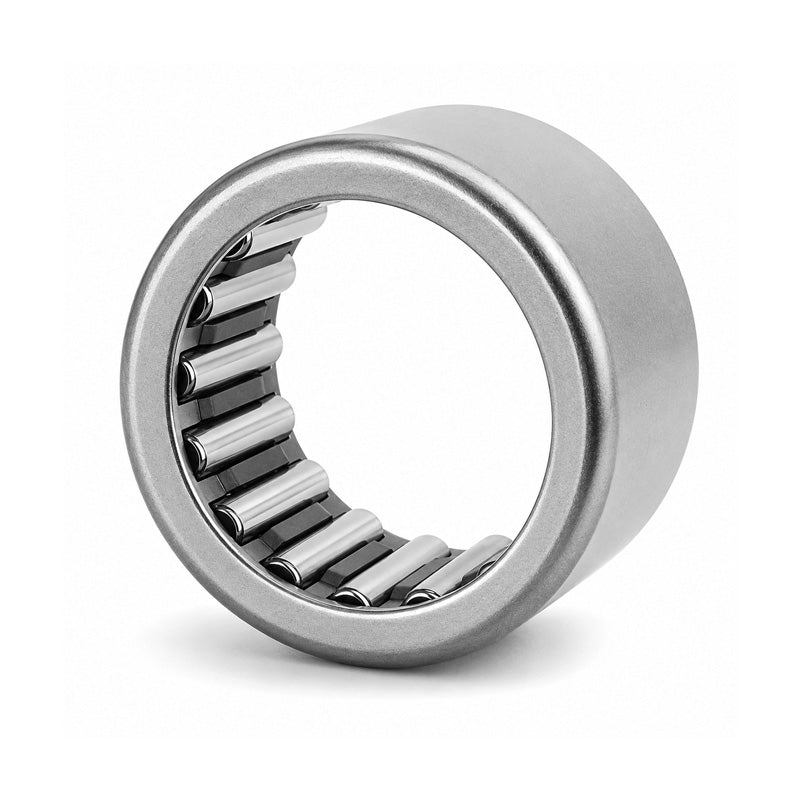

NTN 7E-HMK1725CT/8A Drawn Cup Needle Roller Bearing with Open End and Hardened Inner Ring 17x24x25mm - Allow 2-3 Days

NTN 7E-HMK1725CT/8A Drawn Cup Needle Roller Bearing with Open End and Hardened Inner Ring 17x24x25mm - Allow 2-3 Days
Regular price €6,44 ex VAT
Regular price Sale price €6,44 ex VAT
Sale Sold out

In stock

Price Break
3+ €5,45
4+ €5,23
9+ €5,12
19+ €4,96
49+ €4,85
99+ €4,57
499+ €3,86
999+ €0,00
1999+ €0,00
2999+ €0,00
4999+ €0,00
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
Fw - Inside diameter 17mm
D - Outside diameter 24mm
C - Width of bearing, drawn cup or outer ring 25mm
Lubrication hole on outer ring? No
Inner ring reference IR12X17X25.5
Cr - Dynamic load rating 19.3 kN
C0r - Static load rating 26.7 kN
N - Grease lubrication limit speed 9500 tr/min
N - Oil lubrication limit speed 14000 tr/min
Tmin - Minimum operating temperature -20 Deg C
Tmax - Maximum operating temperature +120 Deg C
