SKU: 7E-HMK2215-NTN

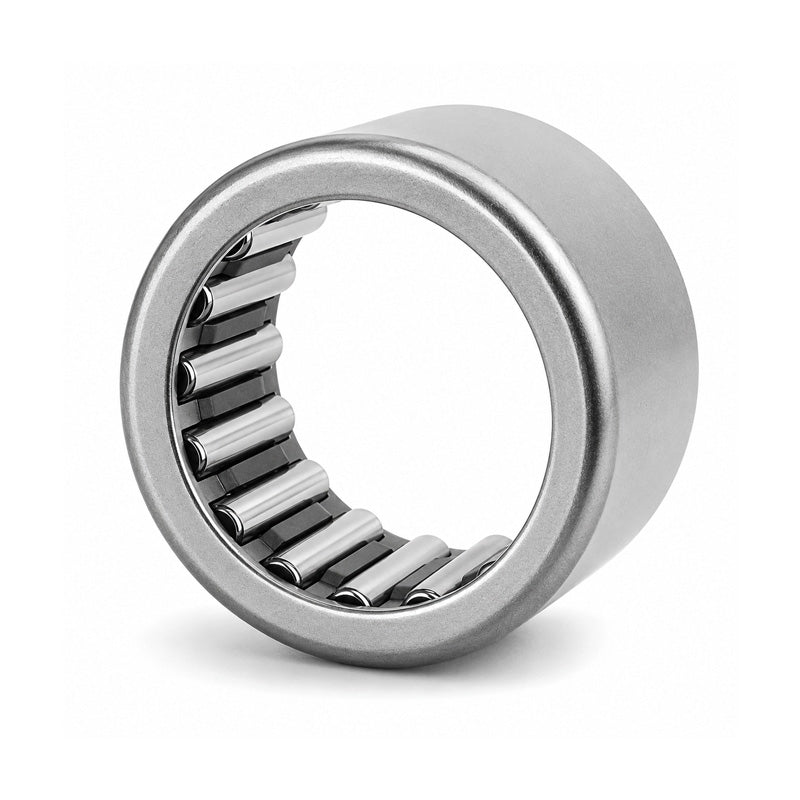

NTN 7E-HMK2215 Drawn Cup Needle Roller Bearing with Open End and Hardened Inner Ring 22x29x15mm - Allow 2-3 Days
NTN 7E-HMK2215 Drawn Cup Needle Roller Bearing with Open End and Hardened Inner Ring 22x29x15mm - Allow 2-3 Days
Regular price
€7,93
ex VAT
Regular price
Sale price
€7,93
ex VAT
Allow 2-3 Days
In stock
Price Break
5+
€7,85
10+
€7,53
20+
€7,37
50+
€7,14
100+
€6,98
500+
€6,58
1000+
€5,55
Couldn't load pickup availability
Share this product
Description
Description
HMK Type Drawn Cup Needle Roller Bearings: These bearings deliver superior load capacity compared to the standard HK series, featuring a thicker outer wall (increased outer diameter) for heavy-duty performance. Characterised by a low sectional height and compact design, they are an economical solution for high-load applications. Available in both open and sealed varieties.
Benefits: Enhanced radial load rating, reinforced outer width, and space-saving design
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 22mm
- Outside Diameter:
- 29mm
- Width:
- 15mm
Technical
Technical
| Fw - Inside diameter | 22mm |
|---|---|
| D - Outside diameter | 29mm |
| C - Width of bearing, drawn cup or outer ring | 15mm |
| Lubrication hole on outer ring? | No |
| Inner ring reference | IR17X22X16D |
| Cr - Dynamic load rating | 13.4 kN |
| C0r - Static load rating | 18.5 kN |
| N - Grease lubrication limit speed | 7500 tr/min |
| N - Oil lubrication limit speed | 11000 tr/min |
| Tmin - Minimum operating temperature | -20 Deg C |
| Tmax - Maximum operating temperature | +120 Deg C |
