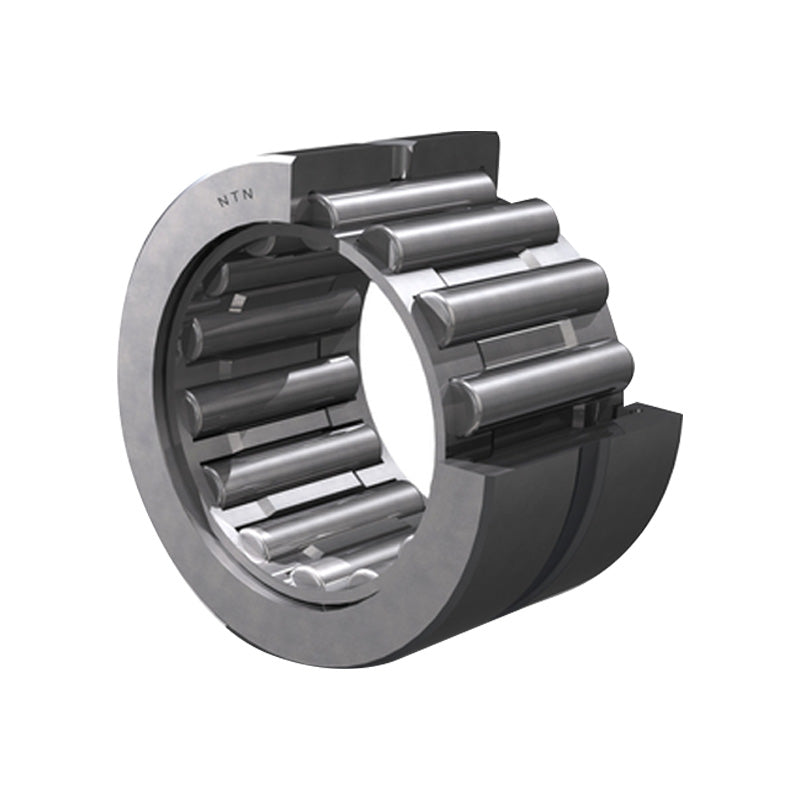

NTN 8Q-NK40X55X30 Machined Needle Roller Bearing with Nitrided Cage no Shaft Sleeve 40x55x30mm - Allow 2-3 Days

NTN 8Q-NK40X55X30 Machined Needle Roller Bearing with Nitrided Cage no Shaft Sleeve 40x55x30mm - Allow 2-3 Days
Regular price €25,87 ex VAT
Regular price Sale price €25,87 ex VAT
Sale Sold out

In stock

Price Break
3+ €21,92
4+ €21,03
9+ €20,59
19+ €19,93
49+ €19,48
99+ €18,38
499+ €15,50
999+ €0,00
1999+ €0,00
2999+ €0,00
4999+ €0,00
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
Fw - Under rollers diameter 40mm
D - Outside diameter 55mm
C - Width of bearing, drawn cup or outer ring 30mm
rs - Minimum fillet radius 1mm
Lubrication hole on outer ring? Yes
k - Lubrication hole diameter 3mm
Radial clearance class CN
Precision class P0
Cr - Dynamic load rating 49 kN
C0r - Static load rating 79 kN
Tmin - Minimum operating temperature -20 Deg C
Tmax - Maximum operating temperature +120 Deg C
Da max - Outer ring maximum shoulder diameter 50mm
ras max - Maximum shaft & housing fillet radius 1mm
