SKU: AS130170-MB

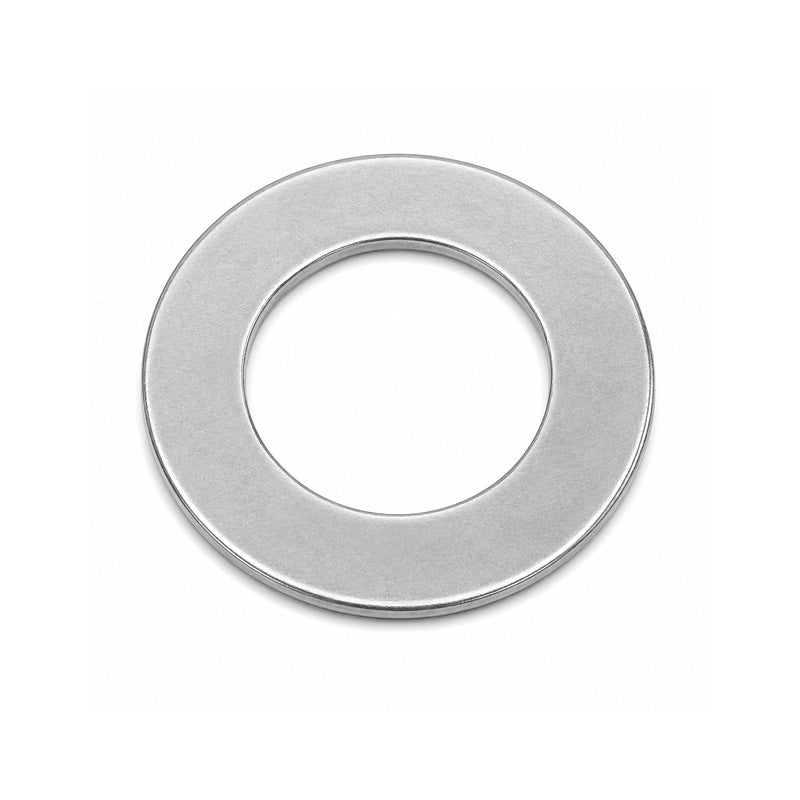

Major Brand AS130170 Thrust Washer Series AS 130x170x1mm
Major Brand AS130170 Thrust Washer Series AS 130x170x1mm
Regular price
€34,85
ex VAT
Regular price
Sale price
€34,85
ex VAT
In stock
Price Break
10+
€26,54
19+
€25,05
29+
€24,75
39+
€24,45
49+
€24,16
74+
€23,86
99+
€22,37
199+
€22,07
249+
€21,77
499+
€21,47
999+
€20,88
Description
Description
|
AS Series Thrust Washers: Made of spring steel (equivalent to AISI 1074 / SAE 5165) these thrust washers are hardened and polished and are only 1mm thick. These washers enable a very economic bearing arrangements and serve as both shaft and housing raceways having moderate stiffness and running accuracy. Benefits: Economical in the use of space, accurately machined and polished, hardened spring steel, moderate running accuracy and stiffness, inexpensive. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 130mm
- Outside Diameter:
- 170mm
- Width:
- 1mm
Technical
Technical
| d | 130mm |
|---|---|
| d1 | 170mm |
| D | 170mm |
| D1 | 132mm |
| B | 1mm |
| r1r2 | 1mm |
| Material | Spring Steel (AISI 1074 / SAE 5165) |
| Weight | 665 g |
