SKU: AS150190-EU

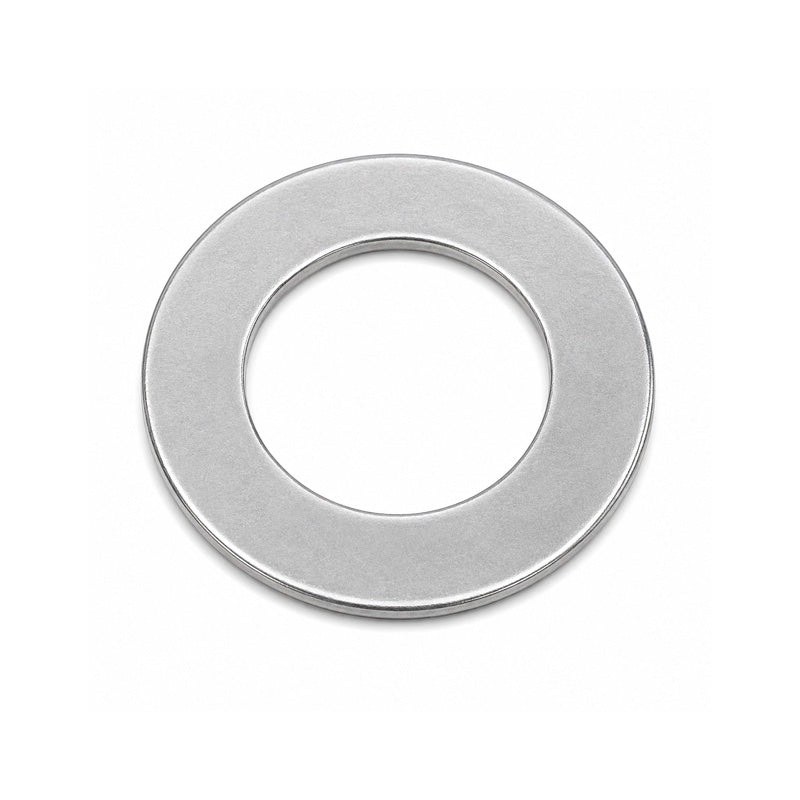

AS150190 Budget Thrust Washer Series AS 150x190x1mm
AS150190 Budget Thrust Washer Series AS 150x190x1mm
Regular price
€8,22
ex VAT
Regular price
Sale price
€8,22
ex VAT
In stock
Price Break
10+
€6,26
19+
€5,91
29+
€5,83
39+
€5,76
49+
€5,69
74+
€5,62
99+
€5,27
199+
€5,20
249+
€5,13
499+
€5,06
999+
€4,92
Description
Description
|
Budget AS Series Thrust Washers: Made of spring steel (equivalent to AISI 1074 / SAE 5165) these thrust washers are hardened and polished and are only 1mm thick. These washers enable a very economic bearing arrangements and serve as both shaft and housing raceways having moderate stiffness and running accuracy. Benefits: Economical in the use of space, accurately machined and polished, hardened spring steel, moderate running accuracy and stiffness, inexpensive. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 150mm
- Outside Diameter:
- 190mm
- Width:
- 1mm
Technical
Technical
| d | 150mm |
|---|---|
| d1 | 188mm |
| D | 190mm |
| D1 | 152mm |
| B | 1mm |
| r1r2 | 1mm |
| Material | Spring Steel (AISI 1074 / SAE 5165) |
| Weight | 795 g |
