SKU: AS4060-EU

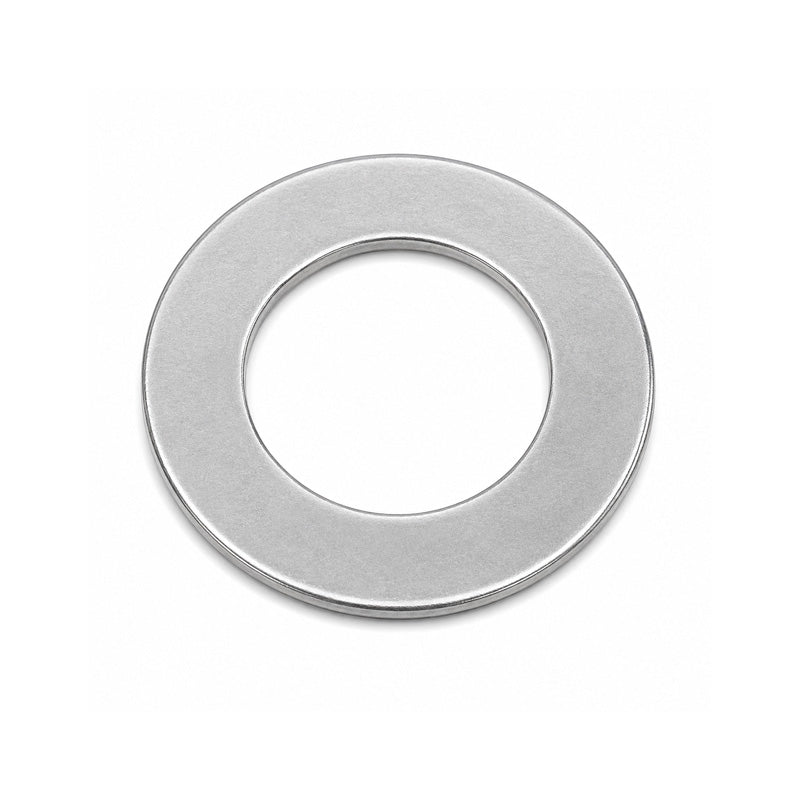

AS4060 Budget Thrust Washer Series AS 40x60x1mm
AS4060 Budget Thrust Washer Series AS 40x60x1mm
Regular price
€1,11
ex VAT
Regular price
Sale price
€1,11
ex VAT
In stock
Price Break
5+
€0,67
10+
€0,57
20+
€0,52
50+
€0,48
100+
€0,38
500+
€0,33
1000+
€0,29
Description
Description
|
Budget AS Series Thrust Washers: Made of spring steel (equivalent to AISI 1074 / SAE 5165) these thrust washers are hardened and polished and are only 1mm thick. These washers enable a very economic bearing arrangements and serve as both shaft and housing raceways having moderate stiffness and running accuracy. Benefits: Economical in the use of space, accurately machined and polished, hardened spring steel, moderate running accuracy and stiffness, inexpensive. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 40mm
- Outside Diameter:
- 60mm
- Width:
- 1mm
Technical
Technical
| d | 40mm |
|---|---|
| d1 | 60mm |
| D | 60mm |
| D1 | 42mm |
| B | 1mm |
| r1r2 | 0.6mm |
| Material | Spring Steel (AISI 1074 / SAE 5165) |
| Weight | 40 g |
