SKU: AX2035-MB

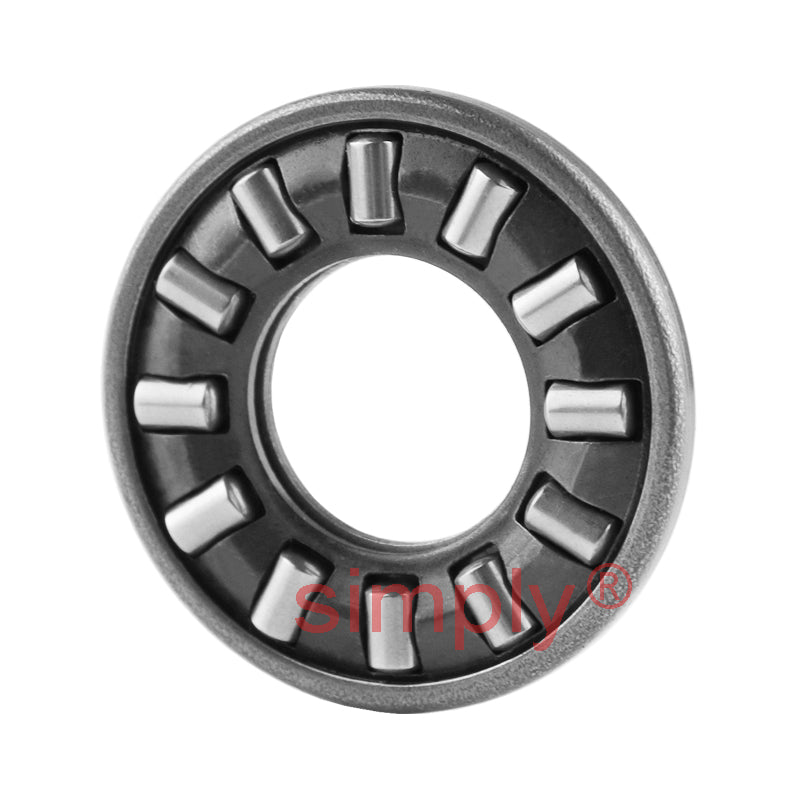

Major Brand AX2035 Thin Needle Roller Thrust Bearing 20x35x2.8mm
Major Brand AX2035 Thin Needle Roller Thrust Bearing 20x35x2.8mm
Regular price
€15,97
ex VAT
Regular price
Sale price
€15,97
ex VAT
In stock
Price Break
10+
€12,17
19+
€11,48
29+
€11,35
39+
€11,21
49+
€11,07
74+
€10,94
99+
€10,25
199+
€10,12
249+
€9,98
499+
€9,84
999+
€9,57
Share this product
Description
Description

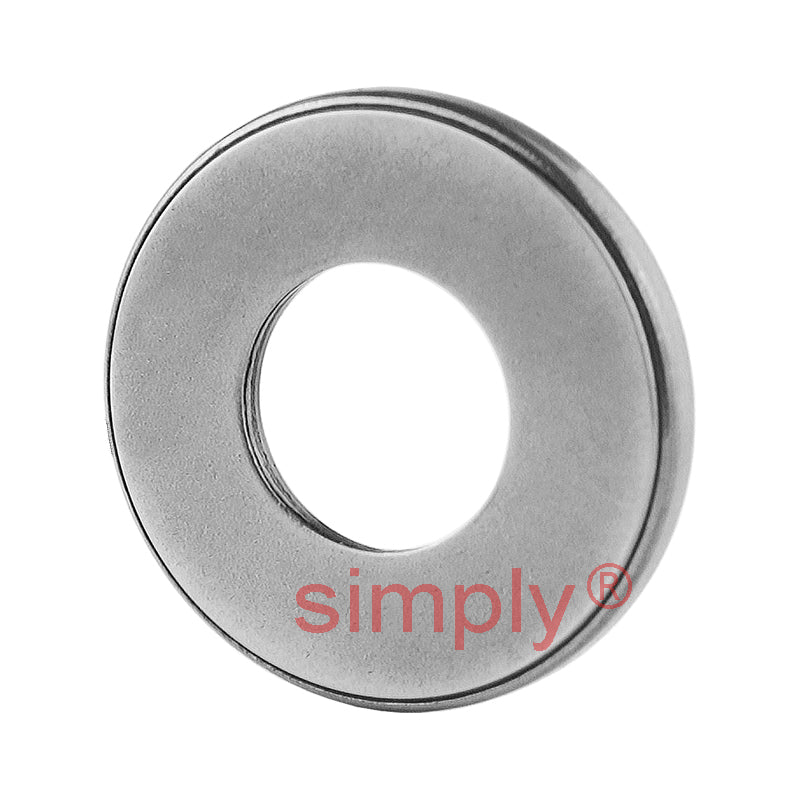

AX Thin Series Needle Roller Thrust Bearings: Needle roller and cage thrust assemblies are a low profile high load thrust bearing assembly and can be used with the CP series thrust washers which are supplied separately. They are manufactured with an integrated washer and a uniform cage that reliably guides many needle rollers. The rollers are slightly relieved towards their outer edge to enable uniform load distribution and prevent any edge damage occurrence. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 35mm
- Width:
- 2.8mm
Technical
Technical
| Dc1 | 20mm |
|---|---|
| D | 35mm |
| B1 | 2.8mm |
| Eb | 22mm |
| Ea | 31.6mm |
| Dynamic load | 11.8 kN |
| Static load | 39 kN |
| Speed rating in oil | 9000 rpm |
| Mass | 0.01 kg |
