SKU: AX3.585110-MB
Major Brand AX3.585110 Thin Needle Roller Thrust Bearing 85x110x3.5mm - Allow 2-3 Days
Major Brand AX3.585110 Thin Needle Roller Thrust Bearing 85x110x3.5mm - Allow 2-3 Days
Regular price
€155,47
ex VAT
Regular price
Sale price
€155,47
ex VAT
In stock
Price Break
10+
€131,71
19+
€126,39
29+
€123,73
39+
€119,74
49+
€117,08
74+
€110,42
99+
€93,13
199+
€0,00
249+
€0,00
499+
€0,00
999+
€0,00
Share this product
Description
Description

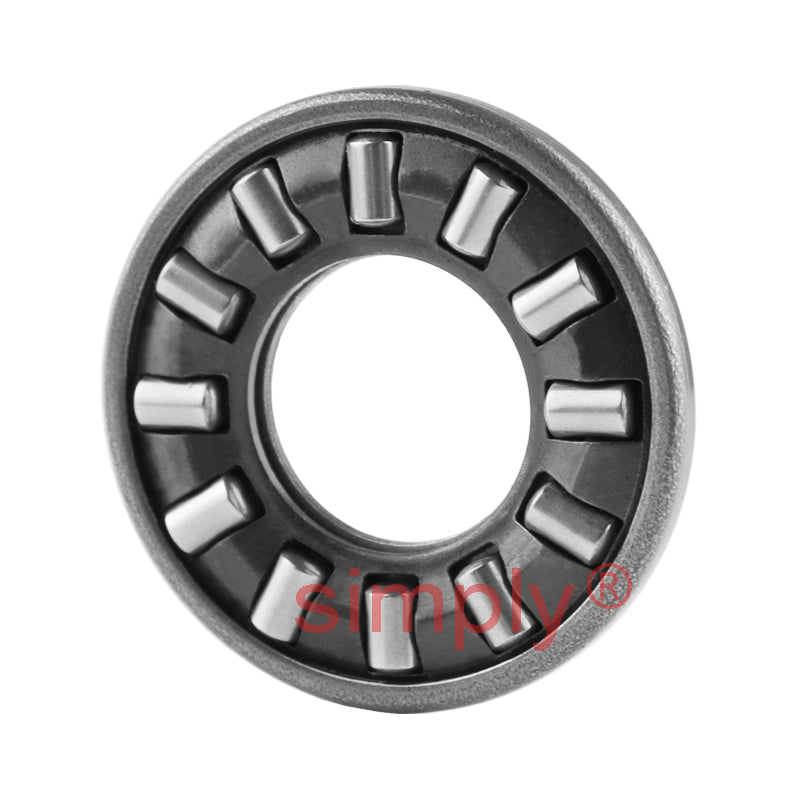

AX Thin Series Needle Roller Thrust Bearings: Needle roller and cage thrust assemblies are a low profile high load thrust bearing assembly and can be used with the CP series thrust washers which are supplied separately. They are manufactured with an integrated washer and a uniform cage that reliably guides many needle rollers. The rollers are slightly relieved towards their outer edge to enable uniform load distribution and prevent any edge damage occurrence. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 85mm
- Outside Diameter:
- 110mm
- Width:
- 3.5mm
Technical
Technical
| Dc1 | 85mm |
|---|---|
| D | 110mm |
| B1 | 3.5mm |
| Eb | 88.5mm |
| Ea | 104.2mm |
| Dynamic load | 38 kN |
| Static load | 270 kN |
| Speed rating in oil | 2600 rpm |
| Mass | 0.078 kg |
