SKU: AX513-MB

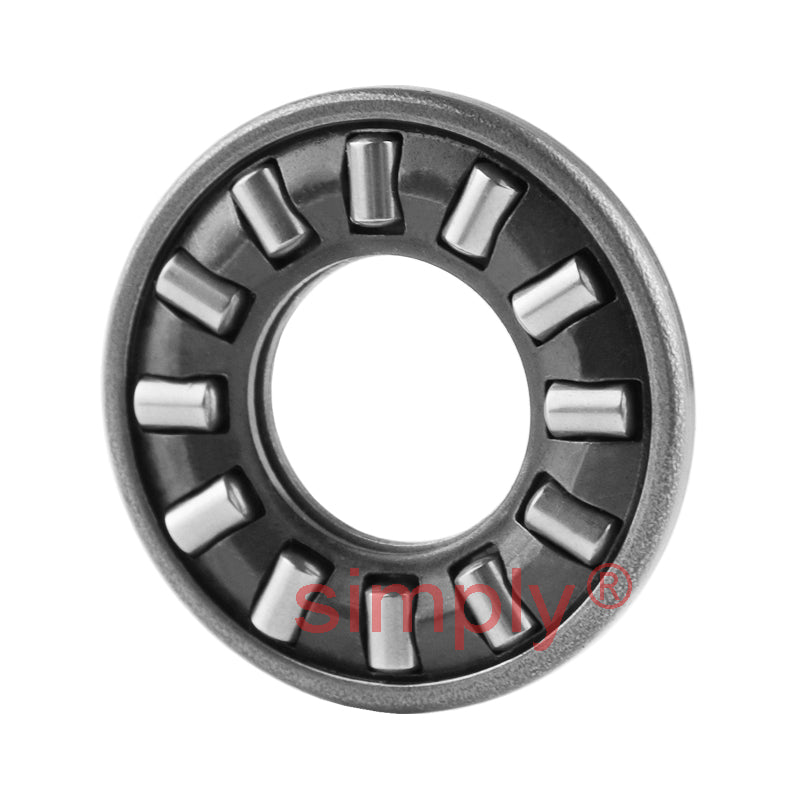

Major Brand AX513 Thin Needle Roller Thrust Bearing 5x13x2.3mm
Major Brand AX513 Thin Needle Roller Thrust Bearing 5x13x2.3mm
Regular price
€10,21
ex VAT
Regular price
Sale price
€10,21
ex VAT
In stock
Price Break
10+
€7,78
19+
€7,34
29+
€7,25
39+
€7,17
49+
€7,08
74+
€6,99
99+
€6,56
199+
€6,47
249+
€6,38
499+
€6,29
999+
€6,12
Share this product
Description
Description
AX Thin Series Needle Roller Thrust Bearings: Needle roller and cage thrust assemblies are a low profile high load thrust bearing assembly and can be used with the CP series thrust washers which are supplied separately. They are manufactured with an integrated washer and a uniform cage that reliably guides many needle rollers. The rollers are slightly relieved towards their outer edge to enable uniform load distribution and prevent any edge damage occurrence. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 5mm
- Outside Diameter:
- 13mm
- Width:
- 2.3mm
Technical
Technical
| Dc1 | 5mm |
|---|---|
| D | 13mm |
| B1 | 2.3mm |
| Eb | 6.3mm |
| Ea | 10.9mm |
| Dynamic load | 3 kN |
| Static load | 5.7 kN |
| Speed rating in oil | 25000 rpm |
| Mass | 0.001 kg |
