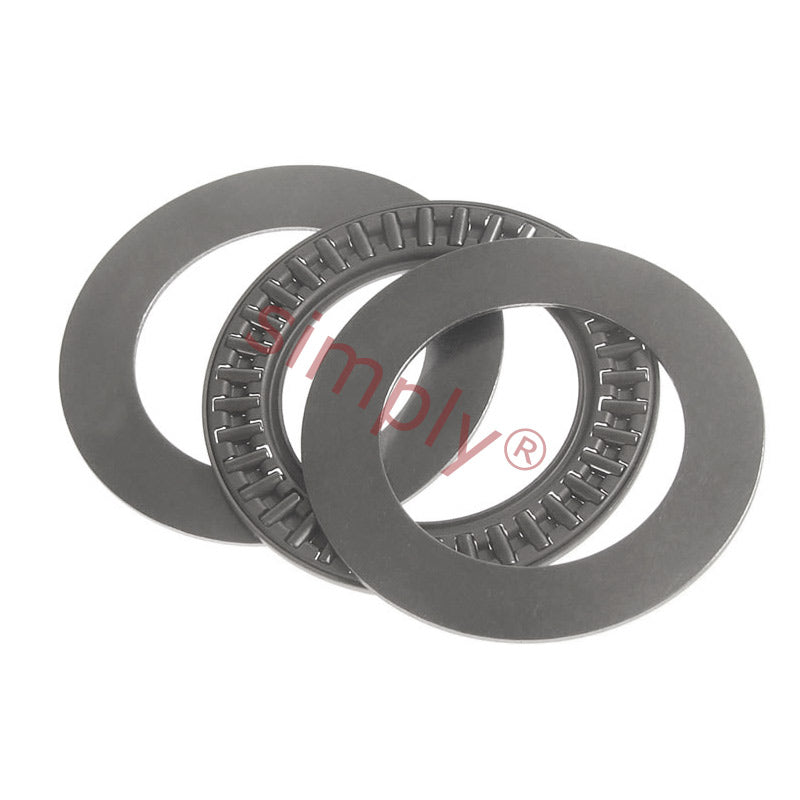

AXK0414/AS0414 Budget Needle Roller Cage with 2 AS Washers 4x14x4mm
AXK0414/AS0414 Budget Needle Roller Cage with 2 AS Washers 4x14x4mm
Regular price
€4,63
ex VAT
Regular price
Sale price
€4,63
ex VAT
In stock
Price Break
10+
€3,53
19+
€3,33
29+
€3,29
39+
€3,25
49+
€3,21
74+
€3,17
99+
€2,97
199+
€2,93
249+
€2,89
499+
€2,85
999+
€2,78
Description
Description
|
Budget AXK Series Needle Roller Thrust Bearings Complete: Needle roller and cage thrust assemblies complete with 2 AS series washers are a low profile high load thrust bearing assembly, they are made up of a uniform cage which reliably guides a large quantity of needle rollers, the rollers are slightly relieved towards their outer edge to enable uniform load distribution and prevents any edge damage occurrence. Benefits: Cost effective thrust solution, wide range, low profile, high load bearing |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 4mm
- Outside Diameter:
- 14mm
- Width:
- 4mm
Technical
Technical
| d | 4mm |
|---|---|
| D | 14mm |
| Dw | 4mm |
| Ea | 5mm |
| Eb | 13mm |
| Dynamic load C | 4150 N |
| Static load Co | 8300 N |
| Fatigue load limit Pu | 865 N |
| Speed in grease | 5600 rpm |
| Speed in oil | 7500 rpm |
| Weight (Assembly) | 0.7 g |
| D | 14mm |
| r1r2 min | -mm |
| Weight AS | 1 g |
| Thrust washer | AS0414 |
