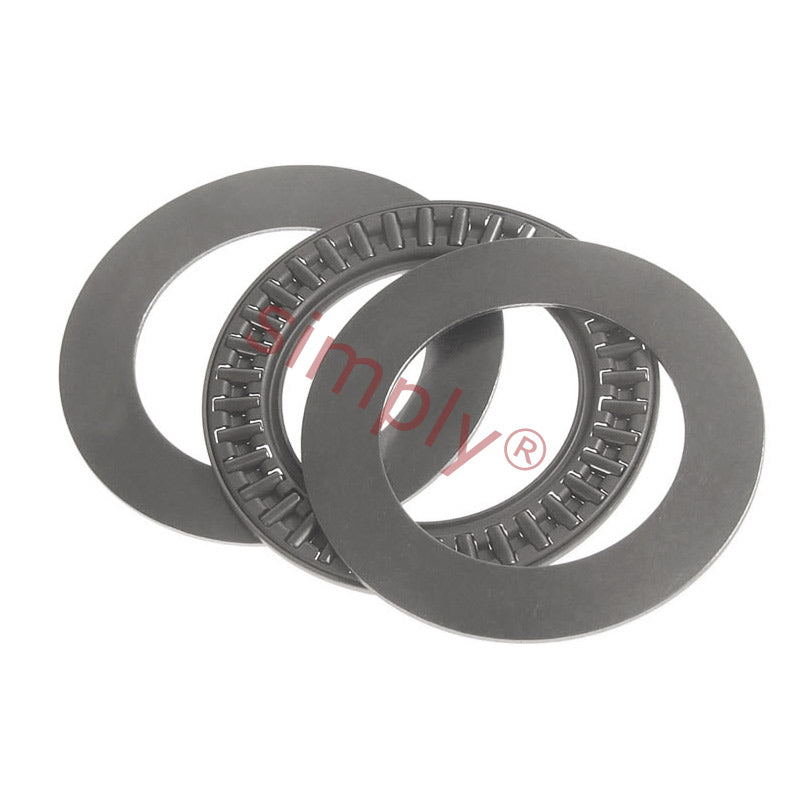

NTN AXK100135 Needle Roller Cage with 2 AS100135 Washers 100x135x6mm
NTN AXK100135 Needle Roller Cage with 2 AS100135 Washers 100x135x6mm
Out of stock
Description
Description
|
AXK Series Needle Roller Thrust Bearings Complete: Needle roller and cage thrust assemblies complete with 2 AS series washers are a low profile high load thrust bearing assembly, they are made up of a uniform cage which reliably guides a large quantity of needle rollers, the rollers are slightly relieved towards their outer edge to enable uniform load distribution and prevents any edge damage occurrence. Benefits: Cost effective thrust solution, wide range, low profile, high load bearing |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 100mm
- Outside Diameter:
- 135mm
- Width:
- 6mm
Technical
Technical
| d | 100mm |
|---|---|
| D | 135mm |
| Dw | 6mm total (2 washers at 1mm each) |
| Ea | 105mm |
| Eb | 133mm |
| Dynamic load | 76500 N |
| Static load | 560000 N |
| Fatigue load limit Pu | 65500 N |
| Speed in grease | 850 rpm |
| Speed in oil | 1200 rpm |
| Weight (assembly) | 105 g |
| d1 | 135mm |
| D | 135mm |
| D1 | 102mm |
| B | 7mm |
