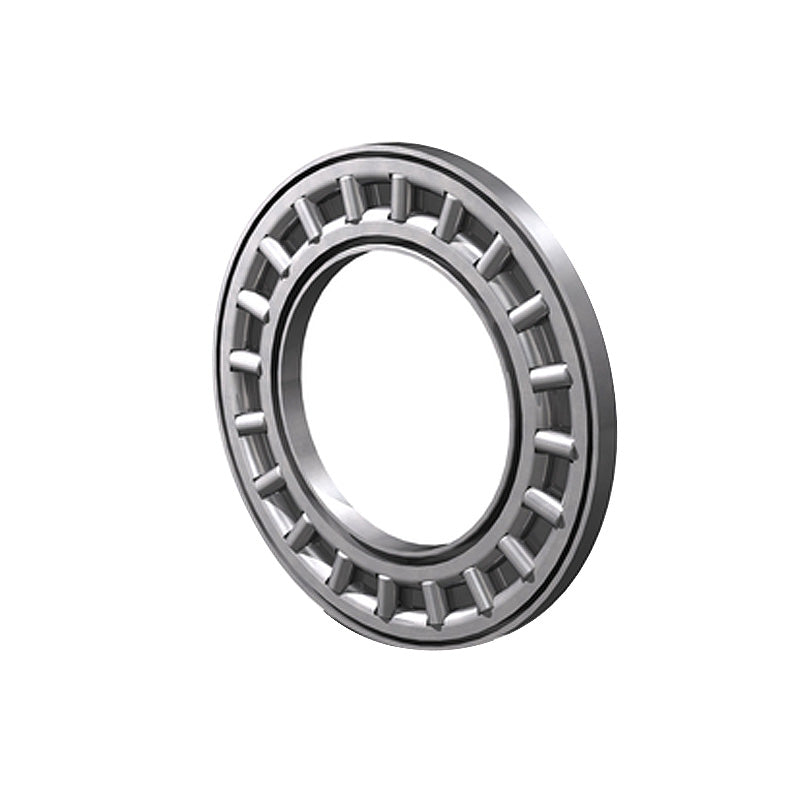

NTN AXK1105 Needle Roller Cage Only 25x42x2mm - Allow 2-3 Days
NTN AXK1105 Needle Roller Cage Only 25x42x2mm - Allow 2-3 Days
Regular price
€5,07
ex VAT
Regular price
Sale price
€5,07
ex VAT
Low stock
Price Break
3+
€3,86
4+
€3,65
9+
€3,60
19+
€3,56
49+
€3,52
99+
€3,47
499+
€3,26
999+
€3,21
1999+
€3,17
2999+
€3,12
4999+
€3,04
Description
Description
|
NTN Needle Roller Thrust Bearing Cages: These cages are engineered for precision, durability, and smooth operation under demanding conditions. Designed by one of the world’s leading bearing manufacturers, these thrust cages provide exceptional rigidity and load-carrying capability while keeping friction to a minimum.
Perfect for applications where space is limited but performance cannot be compromised, NTN thrust cages deliver reliable axial support in high-speed, high-load environments. Their optimised cage design ensures accurate needle roller guidance, reduced heat generation, and long service life. Benefits: High axial load capacity, low friction, compact and lightweight design |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 25mm
- Outside Diameter:
- 42mm
- Width:
- 2mm
Technical
Technical
| Dc1 - Inside diameter | 25mm |
|---|---|
| Dc - Outside diameter | 42mm |
| Dw - Roller Width | 2mm |
| AS washer reference | AS1105 |
| WS inner ring reference | WS81105 |
| GS outer ring reference | GS81105 |
| Ea - Rollers reference outer diameter | 39.4mm |
| Eb - Rollers reference inner diameter | 29.5mm |
| Ca - Dynamic axial load rating | 14.6 kN |
| C0a - Static axial load rating | 58 kN |
| Cua - Limit axial load rating | 7.05 kN |
| Grease lubrication limit speed | 1800 tr/min |
| Oil lubrication limit speed | 7000 tr/min |
| Tmin - Minimum operating temperature | -20 Deg C |
| tmax - Maximum operating temperature | +120 Deg C |
