SKU: AXK1106-NTN

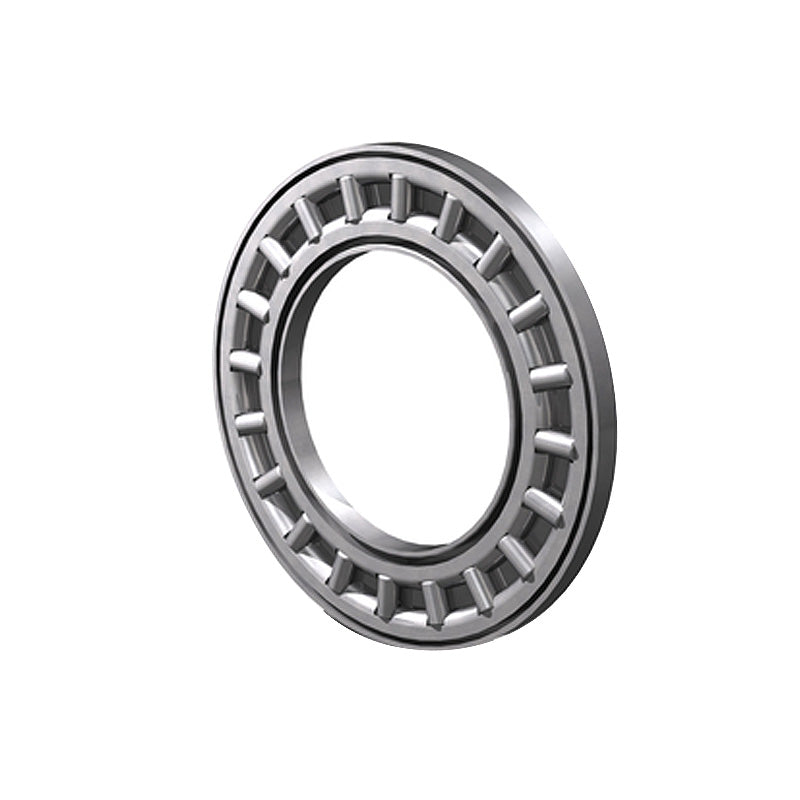

NTN AXK1106 Needle Roller Cage Only 30x47x2mm - Allow 2-3 Days
NTN AXK1106 Needle Roller Cage Only 30x47x2mm - Allow 2-3 Days
Regular price
€5,57
ex VAT
Regular price
Sale price
€5,57
ex VAT
Low stock
Price Break
3+
€4,25
4+
€4,01
9+
€3,96
19+
€3,91
49+
€3,86
99+
€3,82
499+
€3,58
999+
€3,53
1999+
€3,48
2999+
€3,43
4999+
€3,34
Description
Description
|
NTN Needle Roller Thrust Bearing Cages: These cages are engineered for precision, durability, and smooth operation under demanding conditions. Designed by one of the world’s leading bearing manufacturers, these thrust cages provide exceptional rigidity and load-carrying capability while keeping friction to a minimum.
Perfect for applications where space is limited but performance cannot be compromised, NTN thrust cages deliver reliable axial support in high-speed, high-load environments. Their optimised cage design ensures accurate needle roller guidance, reduced heat generation, and long service life. Benefits: High axial load capacity, low friction, compact and lightweight design |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 30mm
- Outside Diameter:
- 47mm
- Width:
- 2mm
Technical
Technical
| Dc1 - Inside diameter | 30mm |
|---|---|
| Dc - Outside diameter | 47mm |
| Dw - Roller Width | 2mm |
| AS washer reference | AS1106 |
| WS inner ring reference | WS81106 |
| GS outer ring reference | GS81106 |
| Ea - Rollers reference outer diameter | 44.4mm |
| Eb - Rollers reference inner diameter | 34.5mm |
| Ca - Dynamic axial load rating | 16.3 kN |
| C0a - Static axial load rating | 69.5 kN |
| Cua - Limit axial load rating | 8.5 kN |
| Grease lubrication limit speed | 1500 tr/min |
| Oil lubrication limit speed | 6000 tr/min |
| Tmin - Minimum operating temperature | -20 Deg C |
| tmax - Maximum operating temperature | +120 Deg C |
