SKU: AXK1629-MB-AS1629-MB

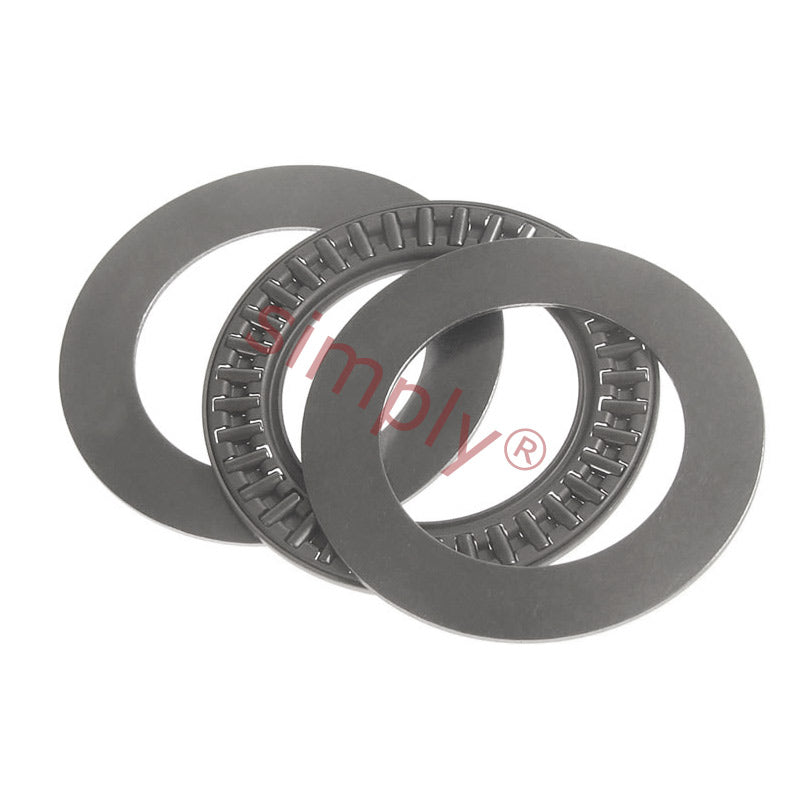

Major Brand AXK1629 Needle Roller Cage with 2 AS1629 Washers 16x29x4mm
Major Brand AXK1629 Needle Roller Cage with 2 AS1629 Washers 16x29x4mm
Regular price
€5,15
ex VAT
Regular price
Sale price
€5,15
ex VAT
In stock
Price Break
10+
€3,92
19+
€3,70
29+
€3,66
39+
€3,62
49+
€3,57
74+
€3,53
99+
€3,31
199+
€3,26
249+
€3,22
499+
€3,17
999+
€3,09
Description
Description
|
AXK Series Needle Roller Thrust Bearings Complete: Needle roller and cage thrust assemblies complete with 2 AS series washers are a low profile high load thrust bearing assembly, they are made up of a uniform cage which reliably guides a large quantity of needle rollers, the rollers are slightly relieved towards their outer edge to enable uniform load distribution and prevents any edge damage occurrence. Benefits: Cost effective thrust solution, wide range, low profile, high load bearing |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 16mm
- Outside Diameter:
- 29mm
- Width:
- 4mm
Technical
Technical
| d | 16mm |
|---|---|
| D | 29mm |
| Dw | 4mm total (2 washers at 1mm each) |
| Dynamic load | 9070 N |
| Static load | 31400N |
| Raceway Washer | LS1629 |
| Thrust Washer | AS1629 |
