SKU: AXK6085-EU-AS6085-EU

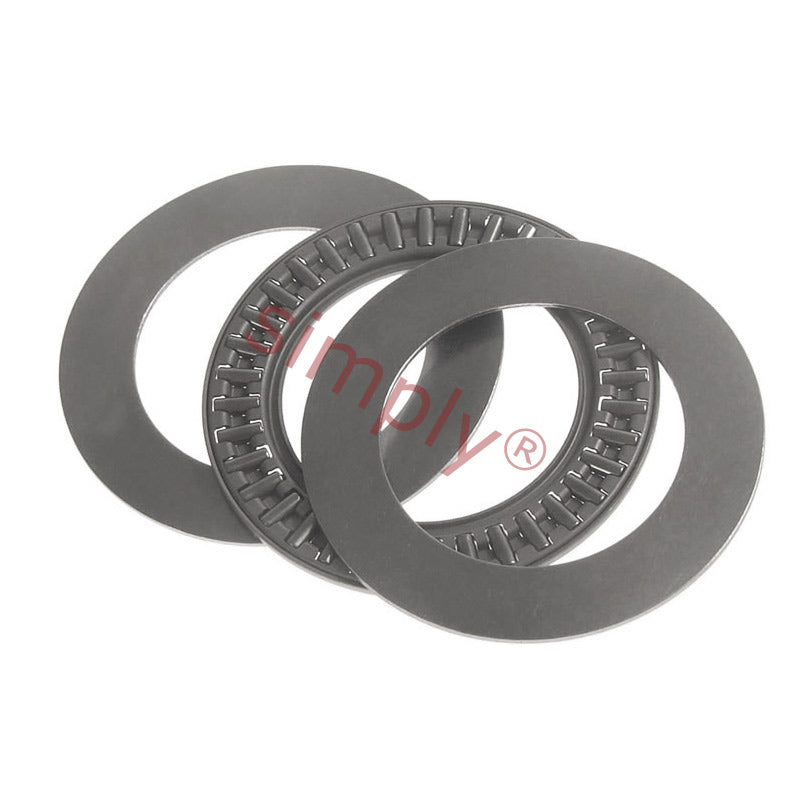

AXK6085/AS6085 Budget Needle Roller Cage with 2 AS Washers 60x85x5mm
AXK6085/AS6085 Budget Needle Roller Cage with 2 AS Washers 60x85x5mm
Regular price
€12,63
ex VAT
Regular price
Sale price
€12,63
ex VAT
In stock
Price Break
10+
€9,62
19+
€9,08
29+
€8,97
39+
€8,86
49+
€8,76
74+
€8,65
99+
€8,11
199+
€8,00
249+
€7,89
499+
€7,78
999+
€7,57
Description
Description
|
Budget AXK Series Needle Roller Thrust Bearings Complete: Needle roller and cage thrust assemblies complete with 2 AS series washers are a low profile high load thrust bearing assembly, they are made up of a uniform cage which reliably guides a large quantity of needle rollers, the rollers are slightly relieved towards their outer edge to enable uniform load distribution and prevents any edge damage occurrence. Benefits: Cost effective thrust solution, wide range, low profile, high load bearing |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 60mm
- Outside Diameter:
- 85mm
- Width:
- 5mm
Technical
Technical
| d | 60mm |
|---|---|
| D | 85mm |
| Dw | 5mm |
| Ea | 65mm |
| Eb | 83mm |
| Dynamic load C | 37500 N |
| Static load Co | 232000 N |
| Fatigue load limit Pu | 28500 N |
| Speed in grease | 1300 rpm |
| Speed in oil | 1800 rpm |
| Weight (Assembly) | 33 g |
| d1 | 85mm |
| D | 85mm |
| D1 | 62mm |
| B | 4.75mm |
| r1r2 min | 1mm |
| Weight LS GS WS | 97 g |
| Weight AS | 22 g |
| Raceway washer | LS6085 |
| Thrust washer | AS6085 |
| Shaft washer | WS81112 |
| Housing washer | GS81112 |
