SKU: BA.1012.ZOH

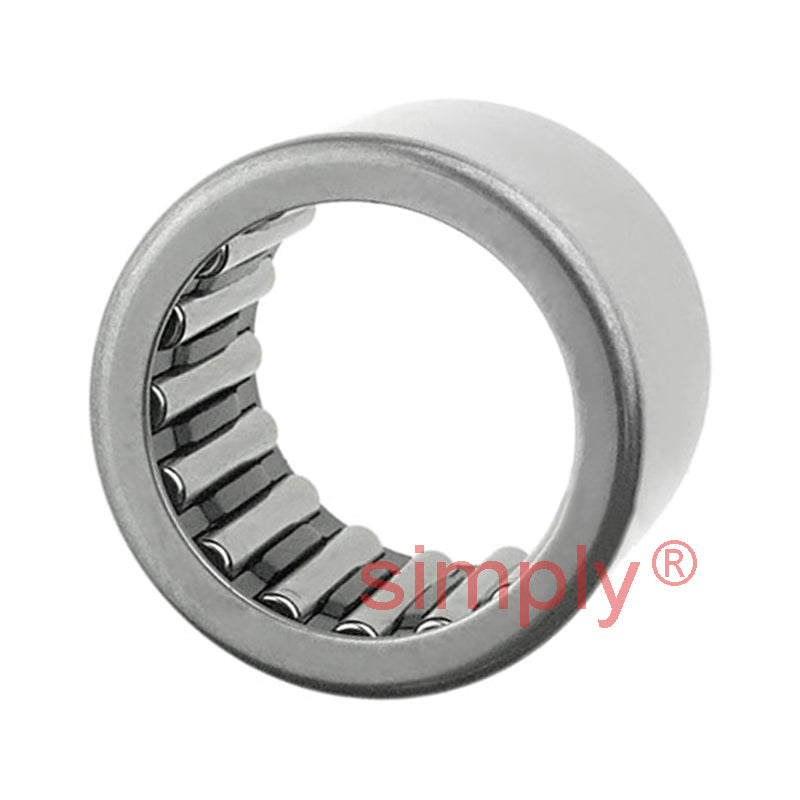

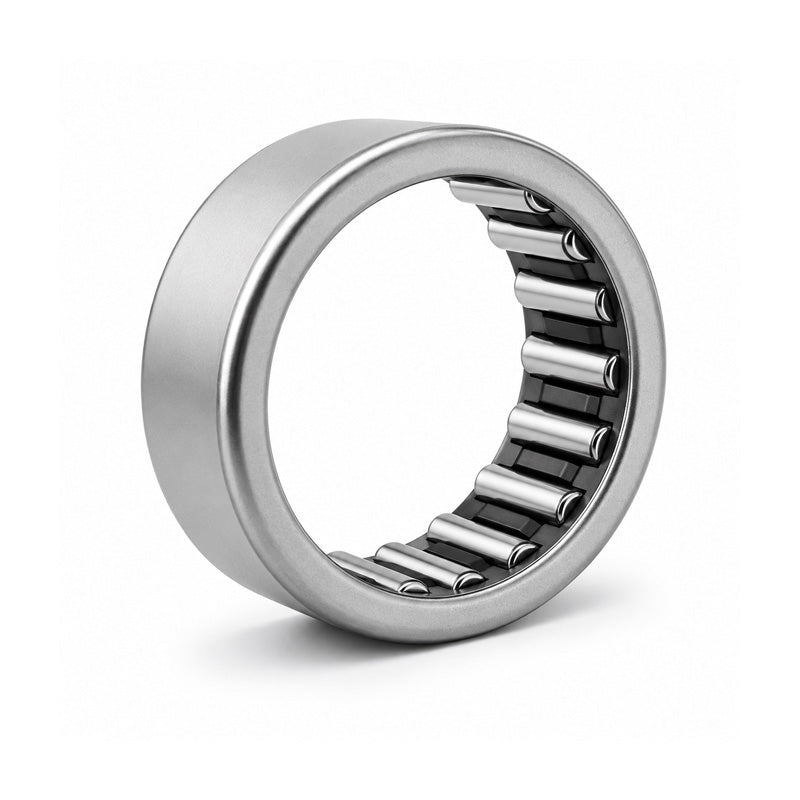

BA1012ZOH Imperial Needle Roller Bearing 5/8x13/16x3/4 inch
BA1012ZOH Imperial Needle Roller Bearing 5/8x13/16x3/4 inch
Regular price
€4,11
ex VAT
Regular price
Sale price
€4,11
ex VAT
Equivalent to: J1012 SCE1012
In stock
Price Break
10+
€3,66
19+
€3,45
29+
€3,41
39+
€3,37
49+
€3,33
74+
€3,29
99+
€3,08
199+
€3,04
249+
€3,00
499+
€2,96
999+
€2,88
Couldn't load pickup availability
Description
Description
|
Imperial Drawn Cup Needle Roller Bearings : As the name suggests are needle roller bearings with a deep drawn thin-walled outer ring with open ends. They are characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required. |
Equivalent: J1012 SCE1012
- Brand / Quality:
- IKO - High Quality
- Inside Diameter:
- 15.88mm = 0.625 (5/8) inch
- Outside Diameter:
- 20.64mm = 0.813 (13/16) inch
- Width:
- 19.05mm = 0.75 (3/4) inch
Technical
Technical
| Fw | 5/8 inch |
|---|---|
| D | 13/16 inch |
| C | 3/4 inch |
| Dynamic Load Cor | 9020 N |
| Static Load Cr | 14100 N |
| Weight | 0.0129 kg |
