SKU: BA.2620.ZOH

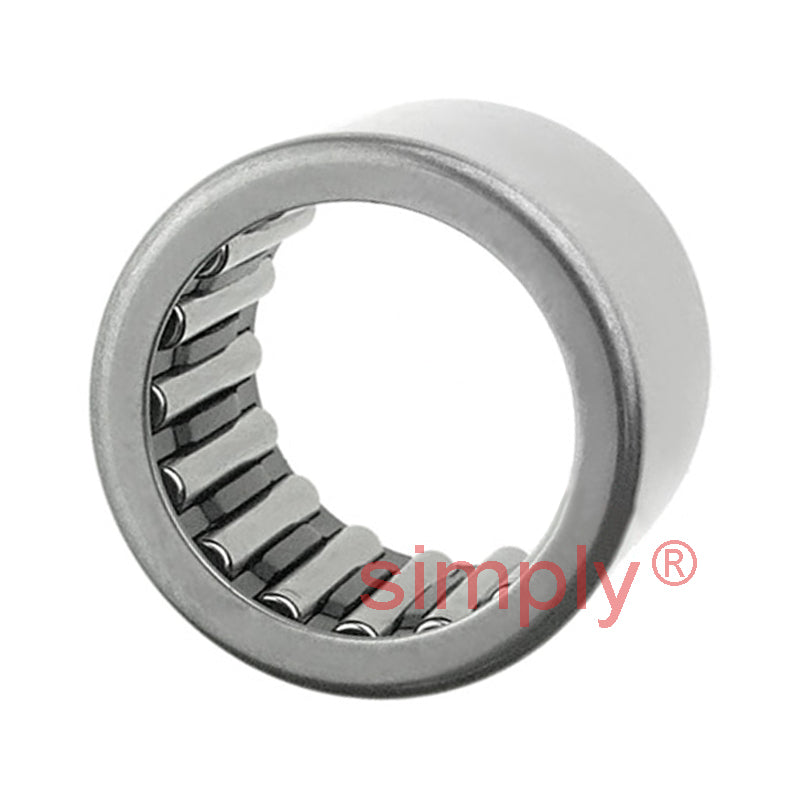

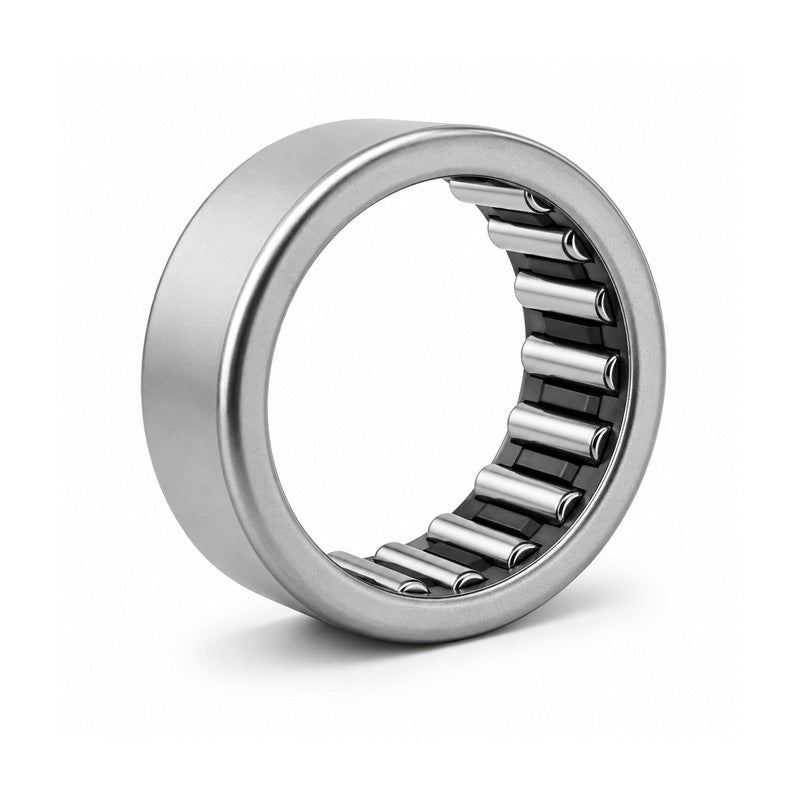

BA2620ZOH Imperial Needle Roller Bearing 1-5/8x2x1-1/4 inch
BA2620ZOH Imperial Needle Roller Bearing 1-5/8x2x1-1/4 inch
Regular price
€10,07
ex VAT
Regular price
Sale price
€10,07
ex VAT
In stock
Price Break
10+
€8,96
19+
€8,46
29+
€8,36
39+
€8,26
49+
€8,16
74+
€8,06
99+
€7,55
199+
€7,45
249+
€7,35
499+
€7,25
999+
€7,05
Couldn't load pickup availability
Description
Description
|
Imperial Drawn Cup Needle Roller Bearings : As the name suggests are needle roller bearings with a deep drawn thin-walled outer ring with open ends. They are characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required. |
- Brand / Quality:
- IKO - High Quality
- Inside Diameter:
- 41.28mm = 1.625 (1-5/8) inch
- Outside Diameter:
- 50.8mm = 2 inch
- Width:
- 31.75mm = 1.25 (1-1/4) inch
Technical
Technical
| Fw | 1-5/8 inch |
|---|---|
| D | 2 inch |
| C | 1-1/4 inch |
| Dynamic Load Cor | 41400 N |
| Static Load Cr | 82100 N |
| Weight | 0.105 kg |
