SKU: BA.910.ZOH

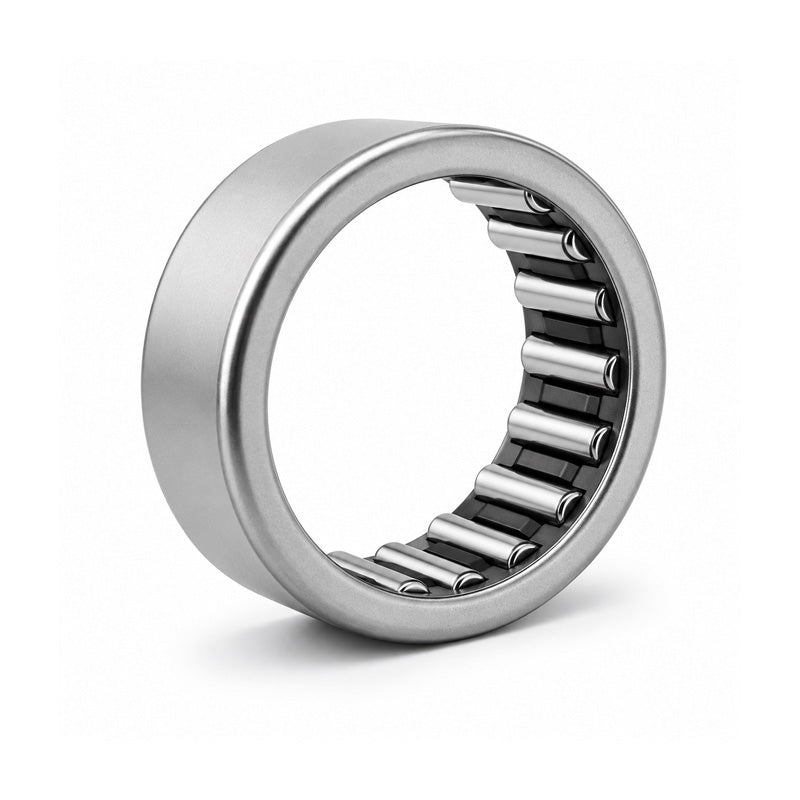

BA910ZOH Imperial Needle Roller Bearing 9/16x3/4x5/8 inch
BA910ZOH Imperial Needle Roller Bearing 9/16x3/4x5/8 inch
Regular price
€3,88
ex VAT
Regular price
Sale price
€3,88
ex VAT
Equivalent to: J910F SCE910
In stock
Price Break
10+
€3,45
19+
€3,26
29+
€3,22
39+
€3,18
49+
€3,14
74+
€3,10
99+
€2,91
199+
€2,87
249+
€2,83
499+
€2,79
999+
€2,72
Couldn't load pickup availability
Description
Description
|
Imperial Drawn Cup Needle Roller Bearings : As the name suggests are needle roller bearings with a deep drawn thin-walled outer ring with open ends. They are characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required. |
Equivalent: J910F SCE910
- Brand / Quality:
- IKO - High Quality
- Inside Diameter:
- 14.29mm = 0.563 (9/16) inch
- Outside Diameter:
- 19.05mm = 0.75 (3/4) inch
- Width:
- 15.88mm = 0.625 (5/8) inch
Technical
Technical
| Fw | 9/16 inch |
|---|---|
| D | 3/4 inch |
| C | 5/8 inch |
| Dynamic Load Cor | 7050 N |
| Static Load Cr | 9910 N |
| Weight | 0.0099 kg |
