SKU: BAM.1412

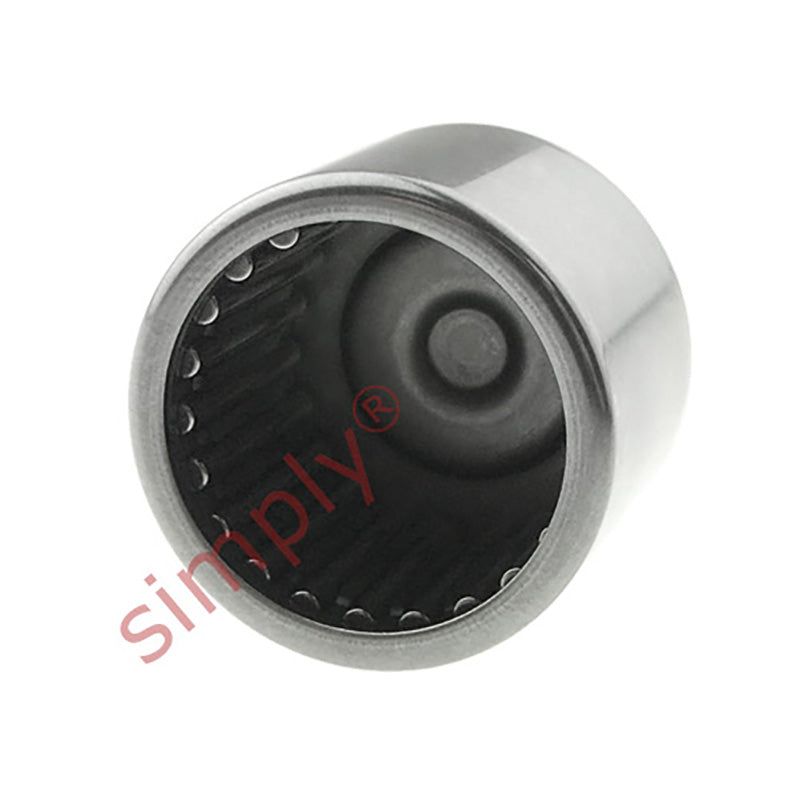

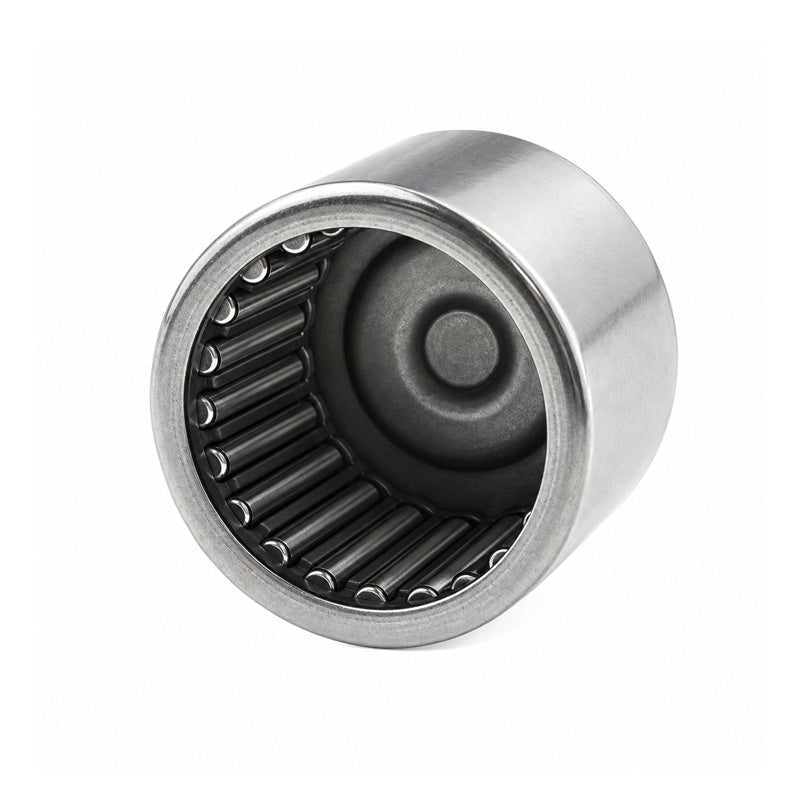

BAM1412 Imperial Closed End Needle Roller Bearing 7/8x1-1/8x3/4 inch
BAM1412 Imperial Closed End Needle Roller Bearing 7/8x1-1/8x3/4 inch
Regular price
€7,06
ex VAT
Regular price
Sale price
€7,06
ex VAT
In stock
Price Break
10+
€6,28
19+
€5,93
29+
€5,86
39+
€5,79
49+
€5,72
74+
€5,65
99+
€5,30
199+
€5,22
249+
€5,15
499+
€5,08
999+
€4,94
Couldn't load pickup availability
Description
Description
|
Imperial Drawn Cup Needle Roller Bearings Closed End Type: As the name suggests are manufactured to imperial dimensions and are needle roller bearings with a deep drawn thin-walled outer ring with one closed end. They are characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required. |
- Brand / Quality:
- IKO - High Quality
- Inside Diameter:
- 22.23mm = 0.875 (7/8) inch
- Outside Diameter:
- 28.58mm = 1.125 (1-1/8) inch
- Width:
- 19.05mm = 0.75 (3/4) inch
Technical
Technical
| Fw | 7/8 inch |
|---|---|
| D | 1-1/8 inch |
| C | 3/4 inch |
| t2 max | 2.8mm |
| Dynamic Load C | 12800 N |
| Static Load C0 | 20400 N |
| Weight | 26 g |
