SKU: BAM.2010

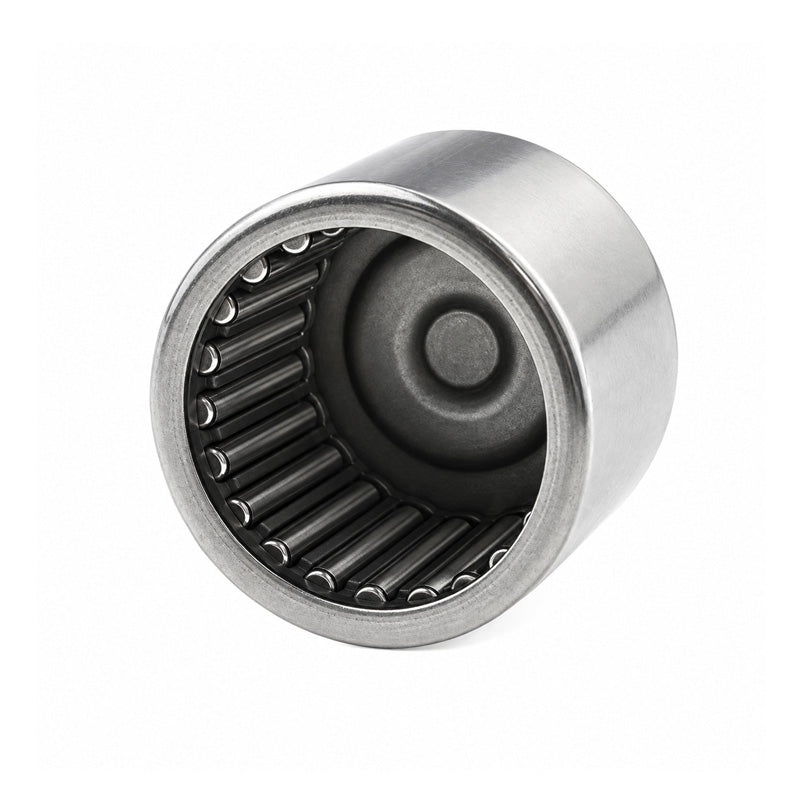

BAM2010 Imperial Closed End Needle Roller Bearing 1-1/4x1-1/2x5/8 inch
BAM2010 Imperial Closed End Needle Roller Bearing 1-1/4x1-1/2x5/8 inch
Regular price
€9,33
ex VAT
Regular price
Sale price
€9,33
ex VAT
In stock
Price Break
10+
€8,30
19+
€7,84
29+
€7,74
39+
€7,65
49+
€7,56
74+
€7,46
99+
€7,00
199+
€6,90
249+
€6,81
499+
€6,72
999+
€6,53
Couldn't load pickup availability
Description
Description
|
Imperial Drawn Cup Needle Roller Bearings Closed End Type: As the name suggests are manufactured to imperial dimensions and are needle roller bearings with a deep drawn thin-walled outer ring with one closed end. They are characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required. |
- Brand / Quality:
- IKO - High Quality
- Inside Diameter:
- 31.75mm = 1.25 (1-1/4) inch
- Outside Diameter:
- 38.1mm = 1.5 (1-1/2) inch
- Width:
- 15.88mm = 0.625 (5/8) inch
Technical
Technical
| Fw | 1-1/4 inch |
|---|---|
| D | 1-1/2 inch |
| C | 5/8 inch |
| t2 max | 2.8mm |
| Dynamic Load C | 12500 N |
| Static Load C0 | 22200 N |
| Weight | 31.5 g |
