SKU: BAM.2110

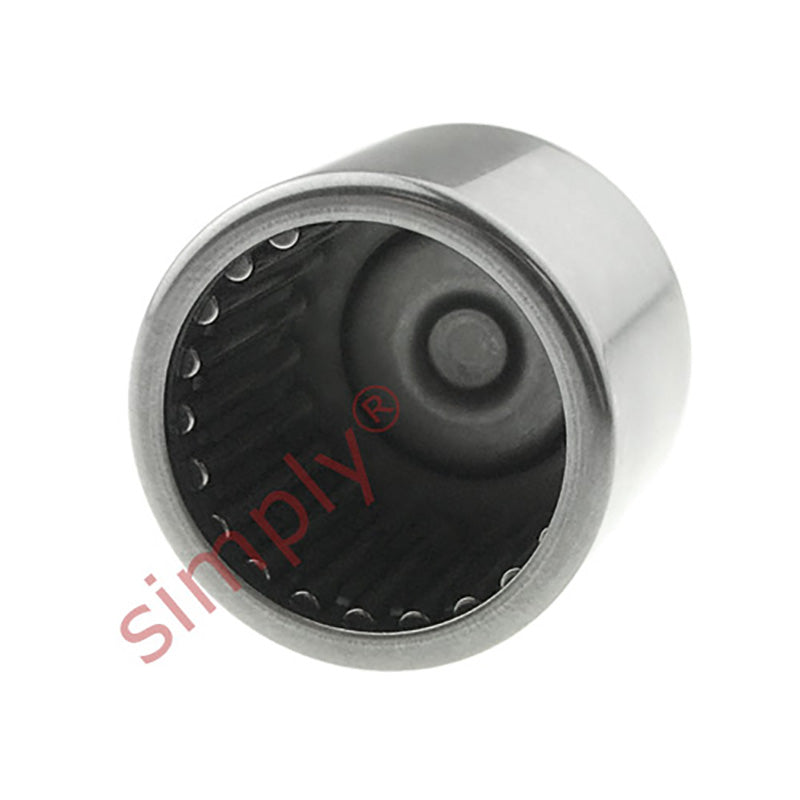

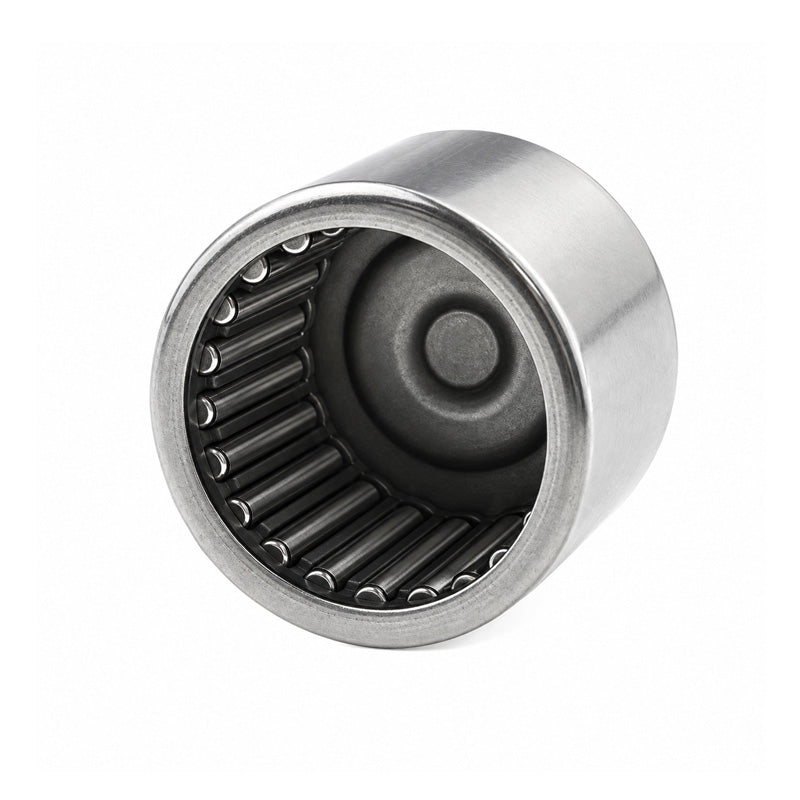

BAM2110 Imperial Closed End Needle Roller Bearing 1-5/16x1-5/8x5/8 inch
BAM2110 Imperial Closed End Needle Roller Bearing 1-5/16x1-5/8x5/8 inch
Regular price
€7,93
ex VAT
Regular price
Sale price
€7,93
ex VAT
In stock
Price Break
10+
€7,06
19+
€6,66
29+
€6,58
39+
€6,50
49+
€6,42
74+
€6,34
99+
€5,95
199+
€5,87
249+
€5,79
499+
€5,71
999+
€5,55
Couldn't load pickup availability
Description
Description
|
Imperial Drawn Cup Needle Roller Bearings Closed End Type: As the name suggests are manufactured to imperial dimensions and are needle roller bearings with a deep drawn thin-walled outer ring with one closed end. They are characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required. |
- Brand / Quality:
- IKO - High Quality
- Inside Diameter:
- 33.33mm = 1.312 (1-5/16) inch
- Outside Diameter:
- 41.28mm = 1.625 (1-5/8) inch
- Width:
- 15.88mm = 0.625 (5/8) inch
Technical
Technical
| Fw | 1-5/16 inch |
|---|---|
| D | 1-5/8 inch |
| C | 5/8 inch |
| t2 max | 2.8mm |
| Dynamic Load C | 15400 N |
| Static Load C0 | 23900 N |
| Weight | 41.5 g |
