SKU: BAM.2220

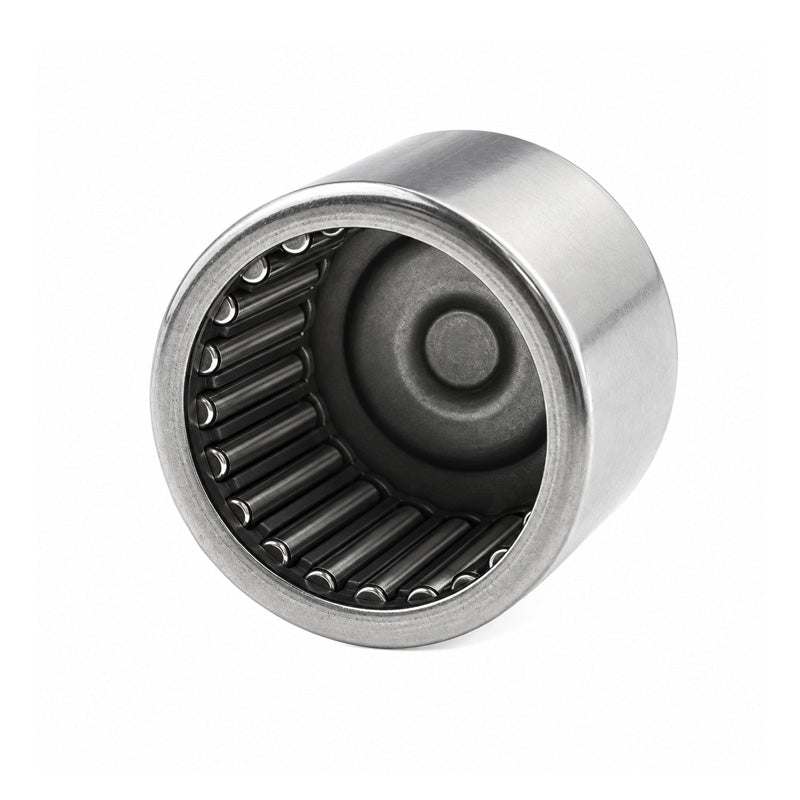

BAM2220 Imperial Closed End Needle Roller Bearing 1-3/8x1-5/8x1-1/4 inch
BAM2220 Imperial Closed End Needle Roller Bearing 1-3/8x1-5/8x1-1/4 inch
Regular price
€11,55
ex VAT
Regular price
Sale price
€11,55
ex VAT
In stock
Price Break
10+
€10,28
19+
€9,70
29+
€9,59
39+
€9,47
49+
€9,36
74+
€9,24
99+
€8,66
199+
€8,55
249+
€8,43
499+
€8,32
999+
€8,09
Couldn't load pickup availability
Description
Description
|
Imperial Drawn Cup Needle Roller Bearings Closed End Type: As the name suggests are manufactured to imperial dimensions and are needle roller bearings with a deep drawn thin-walled outer ring with one closed end. They are characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required. |
- Brand / Quality:
- IKO - High Quality
- Inside Diameter:
- 34.93mm = 1.375 (1-3/8) inch
- Outside Diameter:
- 41.28mm = 1.625 (1-5/8) inch
- Width:
- 31.75mm = 1.25 (1-1/4) inch
Technical
Technical
| Fw | 1-3/8 inch |
|---|---|
| D | 1-5/8 inch |
| C | 1-1/4 inch |
| t2 max | 2.8mm |
| Dynamic Load C | 28900 N |
| Static Load C0 | 67100 N |
| Weight | 64 g |
