SKU: BAM.2824

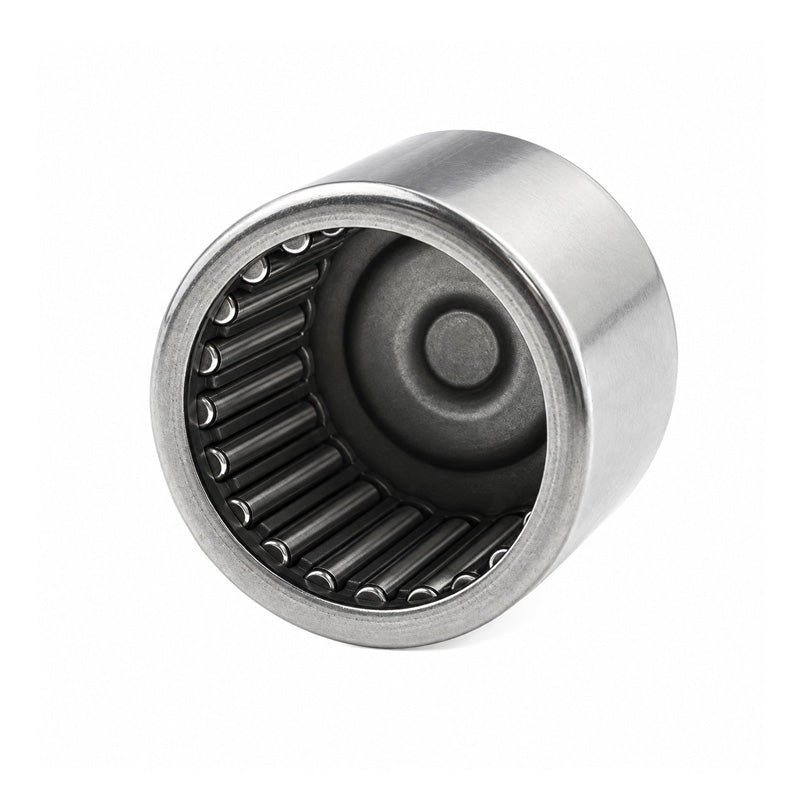

BAM2824 Imperial Closed End Needle Roller Bearing 1-3/4x2-1/8x1-1/2 inch
BAM2824 Imperial Closed End Needle Roller Bearing 1-3/4x2-1/8x1-1/2 inch
Regular price
€15,85
ex VAT
Regular price
Sale price
€15,85
ex VAT
Equivalent to: MJ28241 BCE2824
In stock
Price Break
10+
€14,11
19+
€13,31
29+
€13,16
39+
€13,00
49+
€12,84
74+
€12,68
99+
€11,89
199+
€11,73
249+
€11,57
499+
€11,41
999+
€11,10
Couldn't load pickup availability
Description
Description
|
Imperial Drawn Cup Needle Roller Bearings Closed End Type: As the name suggests are manufactured to imperial dimensions and are needle roller bearings with a deep drawn thin-walled outer ring with one closed end. They are characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required. |
Equivalent: MJ28241 BCE2824
- Brand / Quality:
- IKO - High Quality
- Inside Diameter:
- 44.45mm = 1.75 (1-3/4) inch
- Outside Diameter:
- 53.98mm = 2.125 (2-1/8) inch
- Width:
- 38.1mm = 1.5 (1-1/2) inch
Technical
Technical
| Fw | 1-3/4 inch |
|---|---|
| D | 2-1/8 inch |
| C | 1-1/2 inch |
| t2 max | 2.8mm |
| Dynamic Load C | 52000 N |
| Static Load C0 | 113000 N |
| Weight | 148 g |
