SKU: BAM.4216

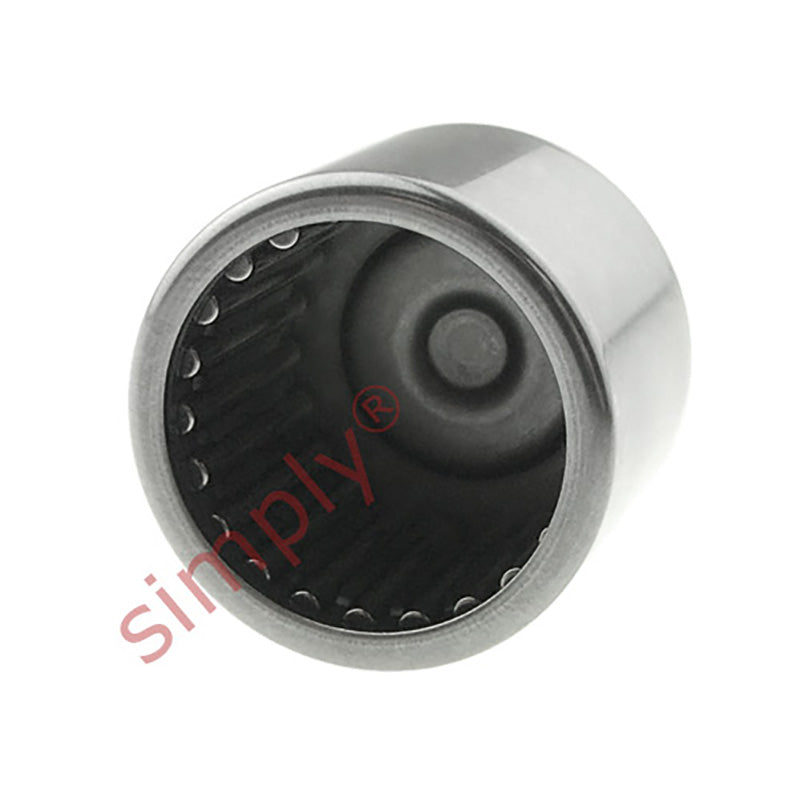

BAM4216 Imperial Closed End Needle Roller Bearing 2-5/8x3x1 inch
BAM4216 Imperial Closed End Needle Roller Bearing 2-5/8x3x1 inch
Regular price
€21,80
ex VAT
Regular price
Sale price
€21,80
ex VAT
In stock
Price Break
10+
€19,40
19+
€18,31
29+
€18,09
39+
€17,88
49+
€17,66
74+
€17,44
99+
€16,35
199+
€16,13
249+
€15,91
499+
€15,70
999+
€15,26
Couldn't load pickup availability
Description
Description
|
Imperial Drawn Cup Needle Roller Bearings Closed End Type: As the name suggests are manufactured to imperial dimensions and are needle roller bearings with a deep drawn thin-walled outer ring with one closed end. They are characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required. |
- Brand / Quality:
- IKO - High Quality
- Inside Diameter:
- 66.68mm = 2.625 (2-5/8) inch
- Outside Diameter:
- 76.2mm = 3 inch
- Width:
- 25.4mm = 1 inch
Technical
Technical
| Fw | 2-5/8 inch |
|---|---|
| D | 3 inch |
| C | 1 inch |
| t2 max | 2.8mm |
| Dynamic Load C | 42000 N |
| Static Load C0 | 97900 N |
| Weight | 161 g |
