SKU: BB-6003-B180-10-ES-C

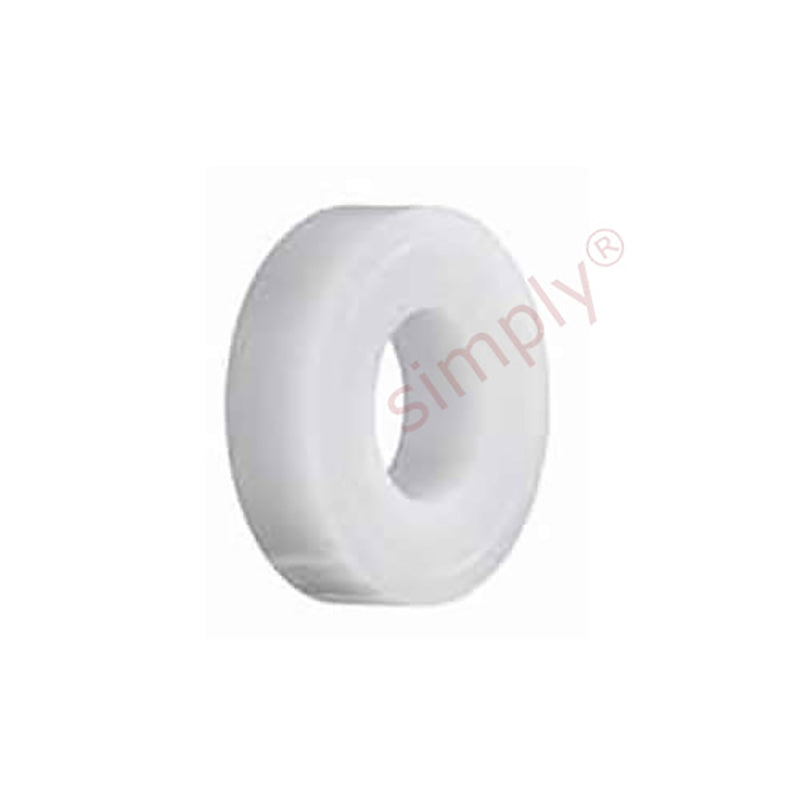

xiros xirodur BB6003B18010ESC Polymer Ball Bearing with PA Cage and Stainless Steel Balls and Cover Plate 17x35x10mm - Allow 7-10 Days
xiros xirodur BB6003B18010ESC Polymer Ball Bearing with PA Cage and Stainless Steel Balls and Cover Plate 17x35x10mm - Allow 7-10 Days
Regular price
€48,43
ex VAT
Regular price
Sale price
€48,43
ex VAT
Allow 7-10 Days
In stock
Price Break
10+
€43,10
19+
€40,68
29+
€40,20
39+
€39,71
49+
€39,23
74+
€38,74
99+
€36,32
199+
€35,84
249+
€35,35
499+
€34,87
999+
€33,90
Couldn't load pickup availability
Share this product
Description
Description
|
IGUS xiros® xirodur® B180 Polymer Ball Bearings: This radial deep groove ball bearings consists of a polymer cage, stainless steel balls and a cover plate. They are for use with temperatures up to +80 deg C. The specially developed material xirodur® B180 provides significantly longer life times at a lower cost. These bearings are ideal for applications that require lubricant-free ball bearings and maintenance-free dry operation. They are also suitable for applications which require corrosion resistance, non-magnetic ball bearings or a light weight bearing. Benefits: Lubrication- and maintenance-free, washable, corrosion-resistant, low friction. |
- Brand / Quality:
- Igus - High Quality
- Inside Diameter:
- 17mm
- Outside Diameter:
- 35mm
- Width:
- 10mm
- Seals / Shields:
- Cover Plate
- Clearance:
- * Standard
Technical
Technical

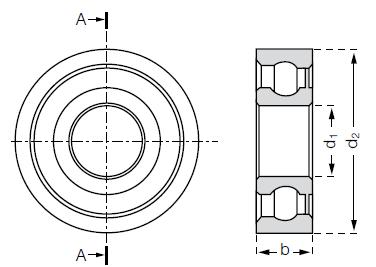

| d1 | 17mm |
|---|---|
| d2 | 35mm |
| b | 10mm |
| Max static axial load | 360 N |
| Static load capacity | 180 N |
| Dynamic load capacity | 250 N |
| Max speed | 1400 rpm |
| Race | B180 |
| Cage | PA |
| Ball material | Stainless Steel |
