SKU: BB-RT-01-100-ES

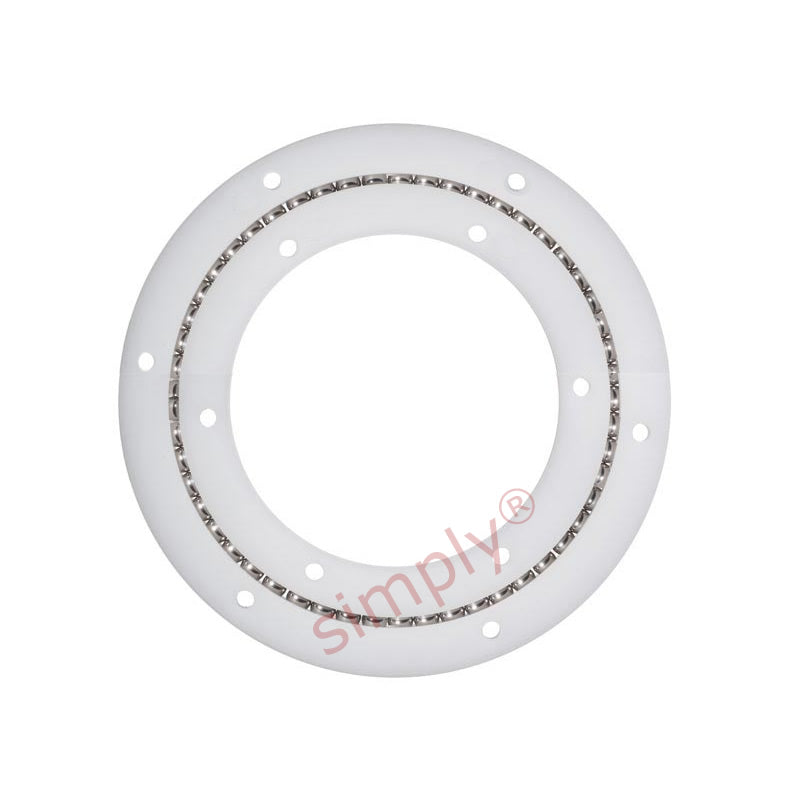

xiros xirodur BBRT01100ES Slewing Ring Bearing with Stainless Steel Balls 100x160x20mm
xiros xirodur BBRT01100ES Slewing Ring Bearing with Stainless Steel Balls 100x160x20mm
Regular price
€392,85
ex VAT
Regular price
Sale price
€392,85
ex VAT
In stock
Price Break
5+
€299,19
9+
€282,38
29+
€279,02
49+
€275,66
99+
€272,30
199+
€268,94
299+
€252,13
399+
€248,77
499+
€245,41
749+
€242,04
999+
€235,32
Description
Description
|
IGUS xiros® xirodur® B180 Slewing Ring Bearings: The combination of stainless steel balls with polymer inner and outer races results in maintenance-free dry operation with low coefficients of friction. The xiros® slewing ring bearing can be used in temperatures of up to +80 deg C. Benefits: Lubrication- and maintenance-free, low weight, corrosion-resistant, washable, cost-effective, electrically insulating |
- Brand / Quality:
- Igus - High Quality
- Inside Diameter:
- 100mm
- Outside Diameter:
- 160mm
- Width:
- 20mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| D | 160mm |
|---|---|
| D1 | 150mm |
| d | 100mm |
| d1 | 110mm |
| H | 20mm |
| h | 5mm |
| T | 60 degrees |
| K1 | 5.2mm |
| K2 | 5.2mm |
| Static load capacity | 1250 N |
| Dynamic load capacity | 250 N |
| Max speed | 1500 rpm |
| Race | B180 |
| Ball material | Stainless Steel |
