SKU: BHA.1012.ZOH

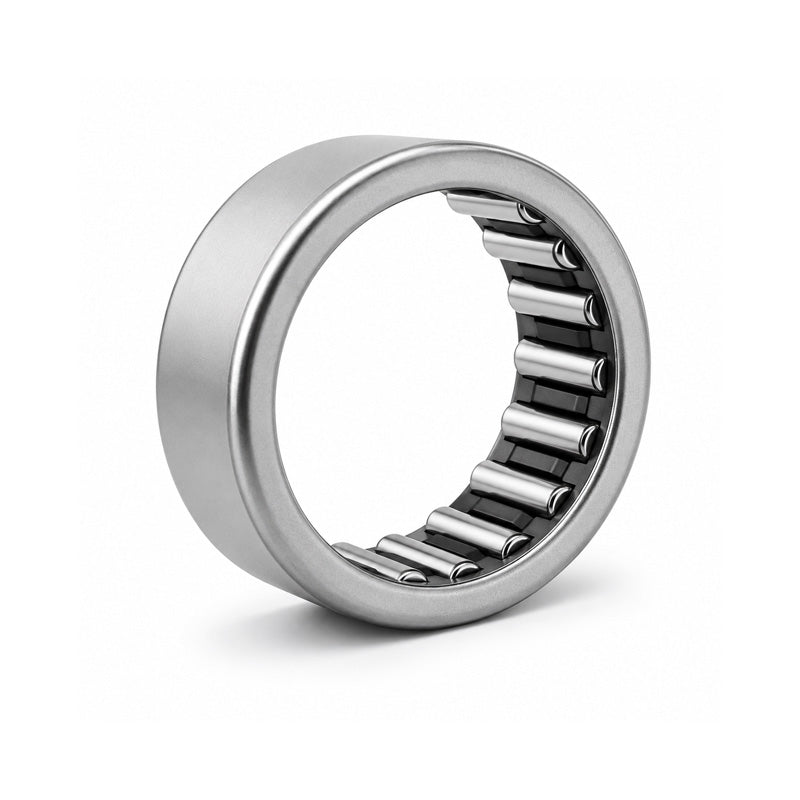

BHA1012ZOH Needle Roller Bearing 5/8x7/8x3/4 inch
BHA1012ZOH Needle Roller Bearing 5/8x7/8x3/4 inch
Regular price
€4,15
ex VAT
Regular price
Sale price
€4,15
ex VAT
In stock
Price Break
10+
€3,69
19+
€3,49
29+
€3,44
39+
€3,40
49+
€3,36
74+
€3,32
99+
€3,11
199+
€3,07
249+
€3,03
499+
€2,99
999+
€2,91
Couldn't load pickup availability
Description
Description
|
Imperial Drawn Cup Needle Roller Bearings : As the name suggests are manufactured to imperial dimensions and are needle roller bearings with a deep drawn thin-walled outer ring with open ends. They are characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required. |
- Brand / Quality:
- IKO - High Quality
- Inside Diameter:
- 15.88mm = 0.625 (5/8) inch
- Outside Diameter:
- 22.23mm = 0.875 (7/8) inch
- Width:
- 19.05mm = 0.75 (3/4) inch
Technical
Technical
| Fw | 5/8 inch |
|---|---|
| D | 7/8 inch |
| C | 3/4 inch |
| Dynamic Load Cor | 12700 N |
| Static Load Cr | 18500 N |
| Weight | 0.018 kg |
