SKU: BHA.1212.ZOH

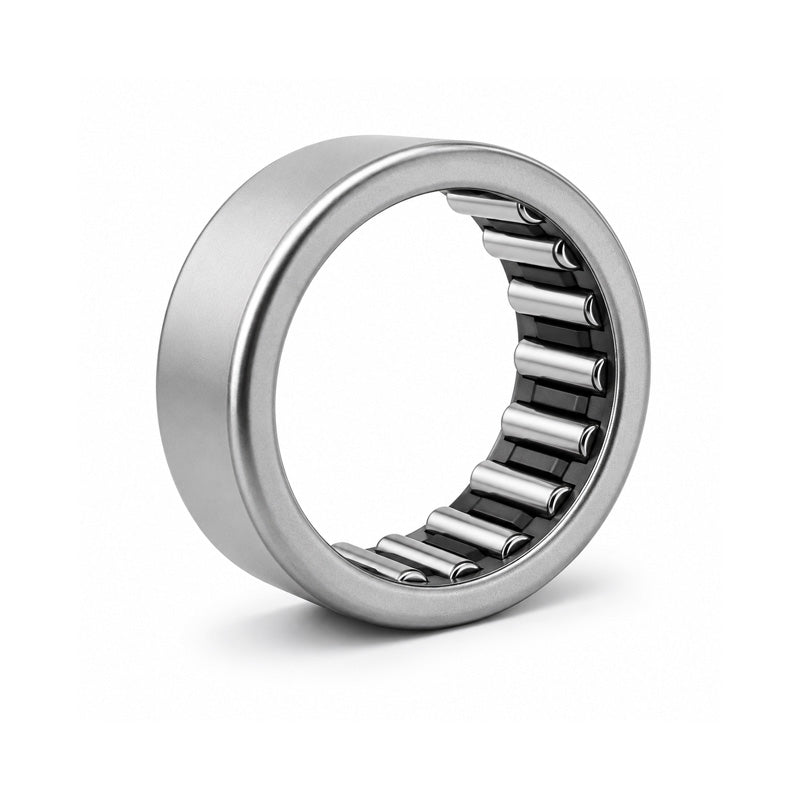

BHA1212ZOH Needle Roller Bearing 3/4x1-1/16x3/4 inch
BHA1212ZOH Needle Roller Bearing 3/4x1-1/16x3/4 inch
Regular price
€5,23
ex VAT
Regular price
Sale price
€5,23
ex VAT
Equivalent to: JH1212 SCH1212
In stock
Price Break
10+
€4,65
19+
€4,39
29+
€4,34
39+
€4,29
49+
€4,24
74+
€4,18
99+
€3,92
199+
€3,87
249+
€3,82
499+
€3,77
999+
€3,66
Couldn't load pickup availability
Description
Description
|
Imperial Drawn Cup Needle Roller Bearings : As the name suggests are manufactured to imperial dimensions and are needle roller bearings with a deep drawn thin-walled outer ring with open ends. They are characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required. |
Equivalent: JH1212 SCH1212
- Brand / Quality:
- IKO - High Quality
- Inside Diameter:
- 19.05mm = 0.75 (3/4) inch
- Outside Diameter:
- 26.99mm = 1.063 (1-1/16) inch
- Width:
- 19.05mm = 0.75 (3/4) inch
Technical
Technical
| Fw | 3/4 inch |
|---|---|
| D | 1-1/16 inch |
| C | 3/4 inch |
| Dynamic Load Cor | 16600 N |
| Static Load Cr | 22600 N |
| Weight | 0.0265 kg |
