SKU: BHA.1818.ZOH

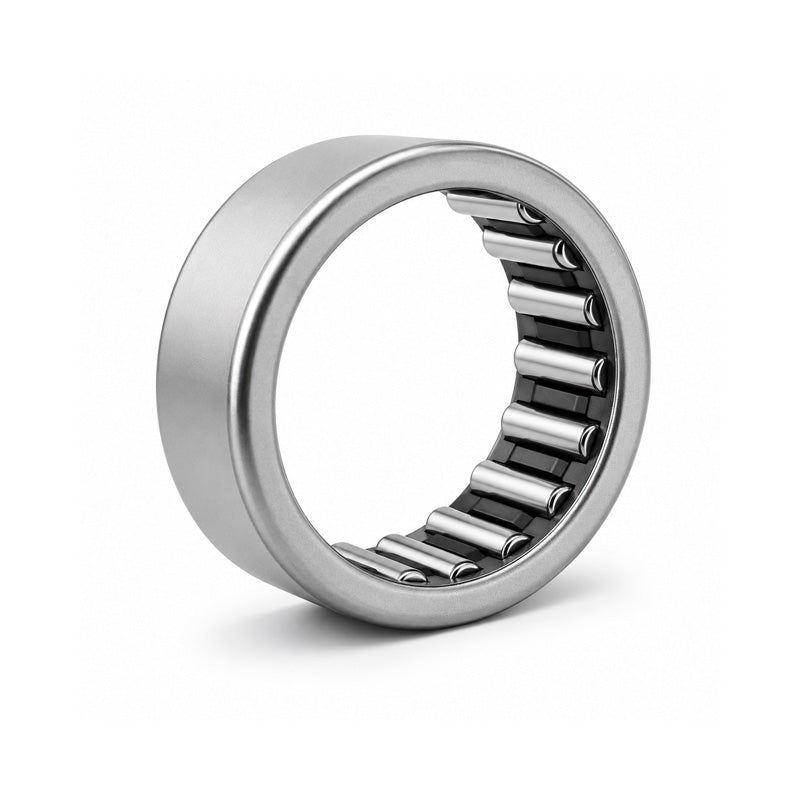

BHA1818ZOH Needle Roller Bearing 1-1/8x1-1/2x1-1/8 inch
BHA1818ZOH Needle Roller Bearing 1-1/8x1-1/2x1-1/8 inch
Regular price
€9,00
ex VAT
Regular price
Sale price
€9,00
ex VAT
Equivalent to: JH1818 SCH1818
In stock
Price Break
10+
€8,01
19+
€7,56
29+
€7,47
39+
€7,38
49+
€7,29
74+
€7,20
99+
€6,75
199+
€6,66
249+
€6,57
499+
€6,48
999+
€6,30
Couldn't load pickup availability
Description
Description
|
Imperial Drawn Cup Needle Roller Bearings : As the name suggests are manufactured to imperial dimensions and are needle roller bearings with a deep drawn thin-walled outer ring with open ends. They are characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required. |
Equivalent: JH1818 SCH1818
- Brand / Quality:
- IKO - High Quality
- Inside Diameter:
- 28.58mm = 1.125 (1-1/8) inch
- Outside Diameter:
- 38.10mm = 1.5 (1-1/2) inch
- Width:
- 28.58mm = 1.125 (1-1/8) inch
Technical
Technical
| Fw | 1-1/8 inch |
|---|---|
| D | 1-1/2 inch |
| C | 1-1/8 inch |
| Dynamic Load Cor | 34900 N |
| Static Load Cr | 56600 N |
| Weight | 0.0675 kg |
