SKU: BHAM.1416

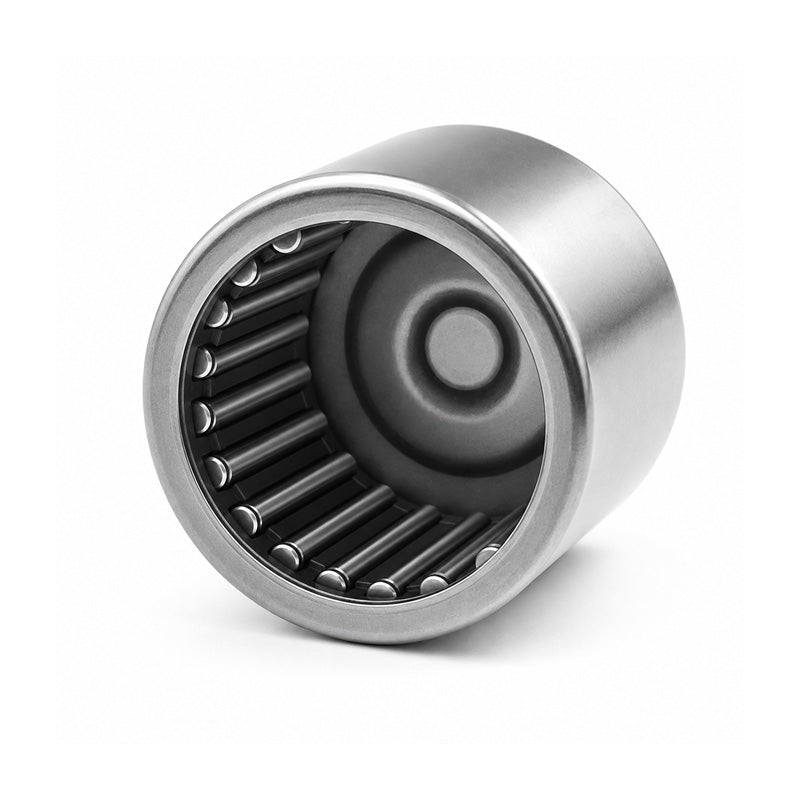

BHAM1416 Needle Roller Bearing 7/8x1-3/16x1 inch
BHAM1416 Needle Roller Bearing 7/8x1-3/16x1 inch
Regular price
€15,88
ex VAT
Regular price
Sale price
€15,88
ex VAT
Equivalent to: MJH14161 BCH1416
In stock
Price Break
10+
€14,13
19+
€13,34
29+
€13,18
39+
€13,02
49+
€12,86
74+
€12,70
99+
€11,91
199+
€11,75
249+
€11,59
499+
€11,43
999+
€11,12
Couldn't load pickup availability
Description
Description
|
Imperial Drawn Cup Needle Roller Bearings Closed End Type: As the name suggests are manufactured to imperial dimensions and are needle roller bearings with a deep drawn thin-walled outer ring with open ends. They are characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required. |
Equivalent: MJH14161 BCH1416
- Brand / Quality:
- IKO - High Quality
- Inside Diameter:
- 22.23mm = 0.875 (7/8) inch
- Outside Diameter:
- 30.16mm = 1.187 (1-3/16) inch
- Width:
- 25.4mm = 1 inch
Technical
Technical
| Fw | 7/8 inch |
|---|---|
| D | 1-3/16 inch |
| C | 1 inch |
| Dynamic Load Cor | 23600 N |
| Static Load Cr | 36900 N |
| Weight | 0.042 kg |
