SKU: BHAM.1818

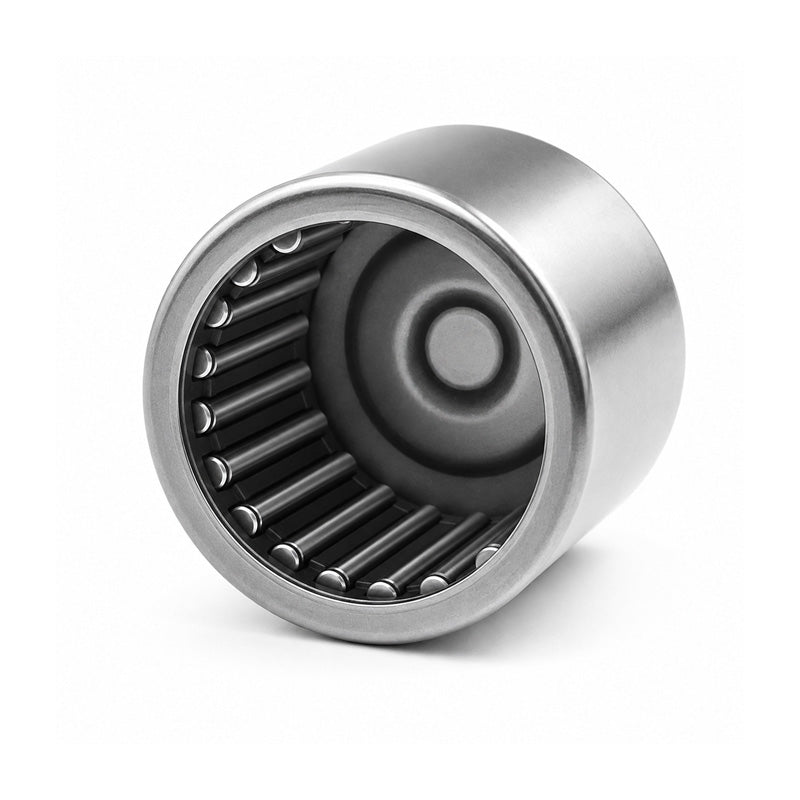

BHAM1818 Needle Roller Bearing 1-1/8x1-1/2x1-1/8 inch
BHAM1818 Needle Roller Bearing 1-1/8x1-1/2x1-1/8 inch
Regular price
€11,55
ex VAT
Regular price
Sale price
€11,55
ex VAT
Equivalent to: MJH18181 BCH1818
In stock
Price Break
10+
€10,28
19+
€9,70
29+
€9,59
39+
€9,47
49+
€9,36
74+
€9,24
99+
€8,66
199+
€8,55
249+
€8,43
499+
€8,32
999+
€8,09
Couldn't load pickup availability
Description
Description
|
Imperial Drawn Cup Needle Roller Bearings Closed End Type: As the name suggests are manufactured to imperial dimensions and are needle roller bearings with a deep drawn thin-walled outer ring with open ends. They are characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required. |
Equivalent: MJH18181 BCH1818
- Brand / Quality:
- IKO - High Quality
- Inside Diameter:
- 28.58mm = 1.125 (1-1/8) inch
- Outside Diameter:
- 38.1mm = 1.5 (1-1/2) inch
- Width:
- 28.58mm = 1.125 (1-1/8) inch
Technical
Technical
| Fw | 1-1/8 inch |
|---|---|
| D | 1-1/2 inch |
| C | 1-1/8 inch |
| Dynamic Load Cor | 34900 N |
| Static Load Cr | 56600 N |
| Weight | 0.0715 kg |
