SKU: BHAM.57

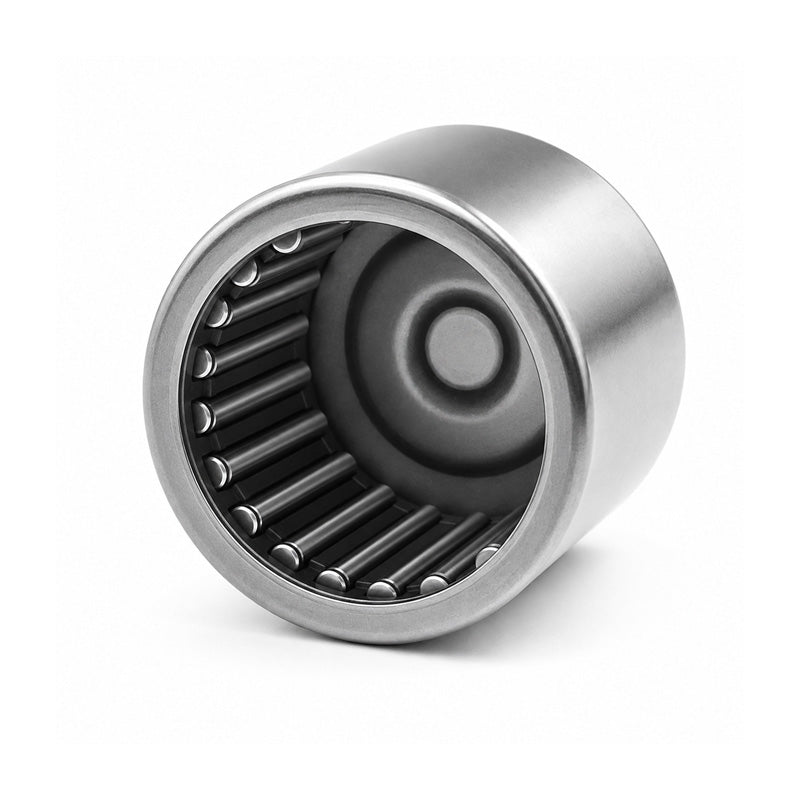

BHAM57 Needle Roller Bearing 5/16x9/16x7/16 inch
BHAM57 Needle Roller Bearing 5/16x9/16x7/16 inch
Regular price
€19,04
ex VAT
Regular price
Sale price
€19,04
ex VAT
Equivalent to: MJH571 BCH57
In stock
Price Break
10+
€16,95
19+
€15,99
29+
€15,80
39+
€15,61
49+
€15,42
74+
€15,23
99+
€14,28
199+
€14,09
249+
€13,90
499+
€13,71
999+
€13,33
Couldn't load pickup availability
Description
Description
|
Imperial Drawn Cup Needle Roller Bearings Closed End Type: As the name suggests are manufactured to imperial dimensions and are needle roller bearings with a deep drawn thin-walled outer ring with open ends. They are characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required. |
Equivalent: MJH571 BCH57
- Brand / Quality:
- IKO - High Quality
- Inside Diameter:
- 7.93mm = 0.312 (5/16) inch
- Outside Diameter:
- 14.29mm = 0.563 (9/16) inch
- Width:
- 11.11mm = 0.437 (7/16) inch
Technical
Technical
| Fw | 5/16 inch |
|---|---|
| D | 9/16 inch |
| C | 7/16 inch |
| Dynamic Load Cor | 4150 N |
| Static Load Cr | 3730 N |
| Weight | 0.0066 kg |
