SKU: BK1212V1-NTN

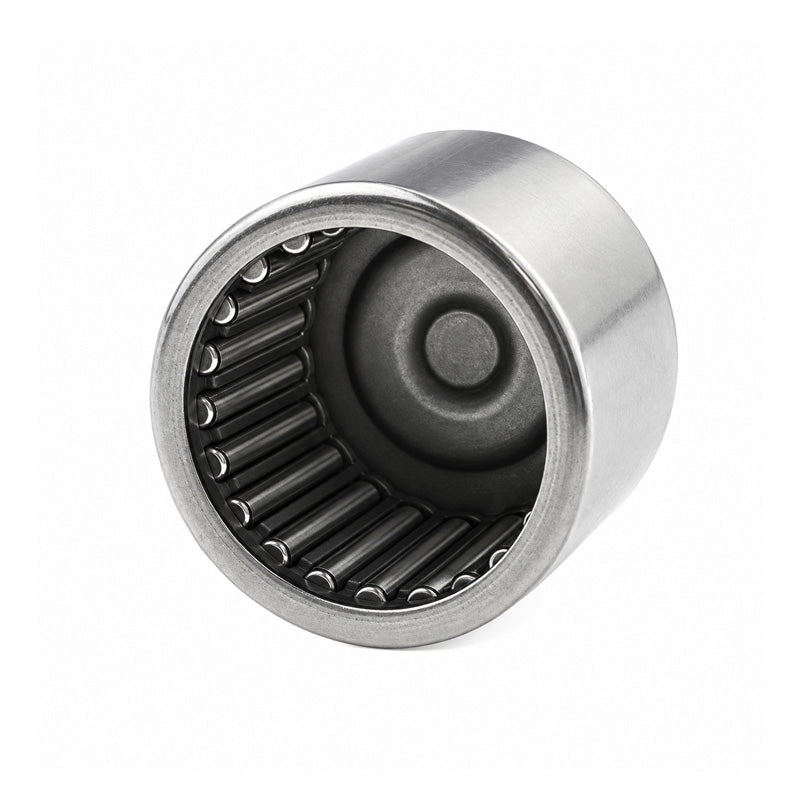

NTN BK1212V1 Drawn Cup Needle Roller Bearing with Closed End 12x18x12mm

NTN BK1212V1 Drawn Cup Needle Roller Bearing with Closed End 12x18x12mm
Regular price €5,91 ex VAT
Regular price Sale price €5,91 ex VAT
Sale Sold out

In stock

Price Break
3+ €4,50
4+ €4,25
9+ €4,20
19+ €4,15
49+ €4,10
99+ €4,05
499+ €3,80
999+ €3,74
1999+ €3,69
2999+ €3,64
4999+ €3,54
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
Fw - Under rollers diameter 12mm
D - Outside diameter 18mm
C - Width of bearing, drawn cup or outer ring 12mm
C1 - Max drawn cup closed end thickness 2.7mm
Lubrication hole on outer ring? No
Inner ring reference IR8X12X12.5
Cr - Dynamic load rating 6.6 kN
C0r - Static load rating 7.3 kN
N - Grease lubrication limit speed 13000 tr/min
N - Oil lubrication limit speed 20000 tr/min
Tmin - Minimum operating temperature -20 Deg C
Tmax - Maximum operating temperature +120 Deg C
