SKU: BK1512-NTN

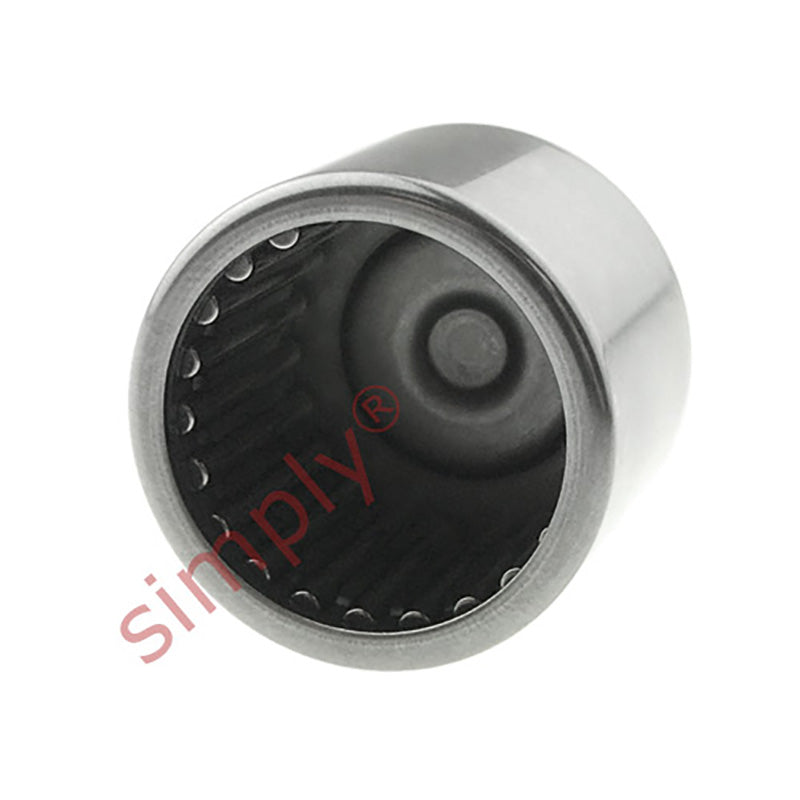

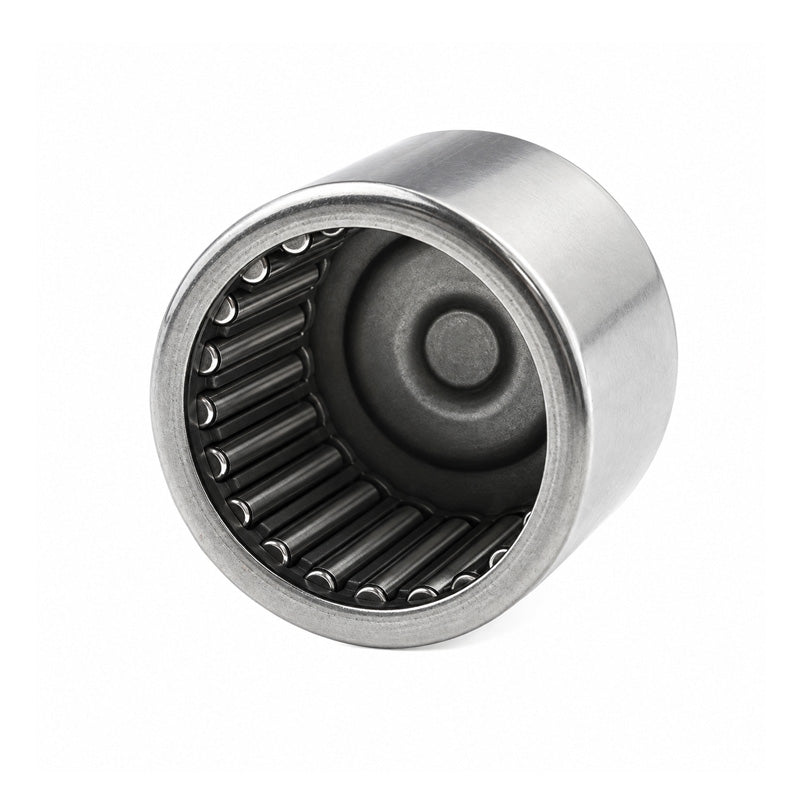

NTN BK1512 Drawn Cup Needle Roller Bearing with Closed End 15x21x12mm

NTN BK1512 Drawn Cup Needle Roller Bearing with Closed End 15x21x12mm
Regular price €6,56 ex VAT
Regular price Sale price €6,56 ex VAT
Sale Sold out

In stock

Price Break
3+ €4,99
4+ €4,71
9+ €4,66
19+ €4,60
49+ €4,54
99+ €4,49
499+ €4,21
999+ €4,15
1999+ €4,10
2999+ €4,04
4999+ €3,93
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
Fw - Under rollers diameter 15mm
D - Outside diameter 21mm
C - Width of bearing, drawn cup or outer ring 12mm
C1 - Max drawn cup closed end thickness 2.7mm
Lubrication hole on outer ring? No
Inner ring reference IR12X15X12.5
Cr - Dynamic load rating 7.5 kN
C0r - Static load rating 9.1 kN
N - Grease lubrication limit speed 11000 tr/min
N - Oil lubrication limit speed 16000 tr/min
Tmin - Minimum operating temperature -20 Deg C
Tmax - Maximum operating temperature +120 Deg C
