SKU: BK1612-NTN

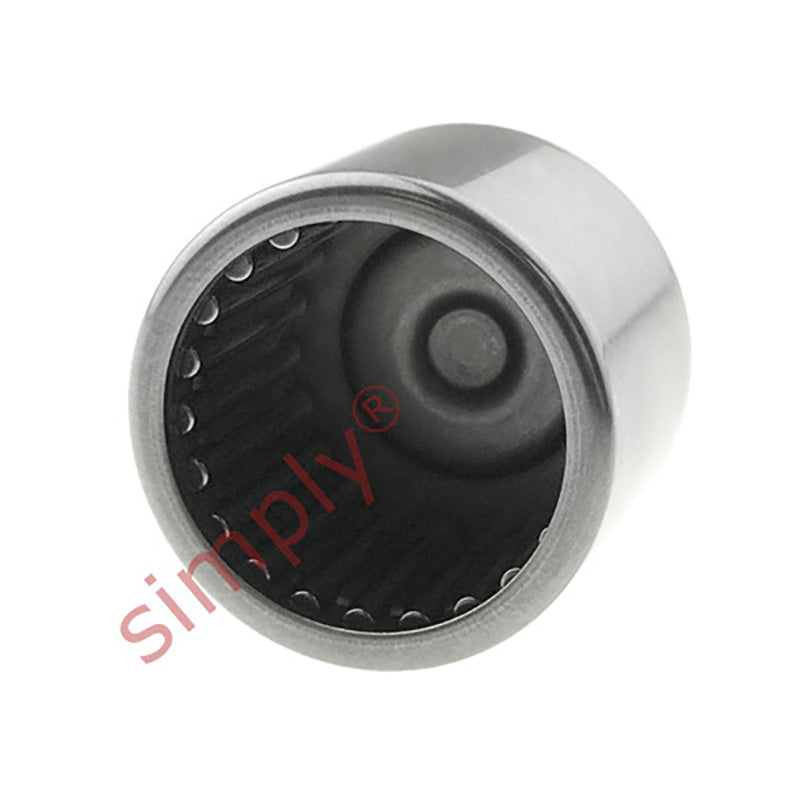

NTN BK1612 Drawn Cup Needle Roller Bearing with Closed End 16x22x12mm

NTN BK1612 Drawn Cup Needle Roller Bearing with Closed End 16x22x12mm
Regular price €7,00 ex VAT
Regular price Sale price €7,00 ex VAT
Sale Sold out

In stock

Price Break
3+ €5,33
4+ €5,03
9+ €4,97
19+ €4,91
49+ €4,85
99+ €4,79
499+ €4,49
999+ €4,43
1999+ €4,37
2999+ €4,31
4999+ €4,19
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
Fw - Under rollers diameter 16mm
D - Outside diameter 22mm
C - Width of bearing, drawn cup or outer ring 12mm
C1 - Max drawn cup closed end thickness 2.7mm
Lubrication hole on outer ring? No
Inner ring reference IR12X16X13
Cr - Dynamic load rating 7.75 kN
C0r - Static load rating 9.7 kN
N - Grease lubrication limit speed 10000 tr/min
N - Oil lubrication limit speed 15000 tr/min
Tmin - Minimum operating temperature -20 Deg C
Tmax - Maximum operating temperature +120 Deg C
