SKU: BK2212-NTN

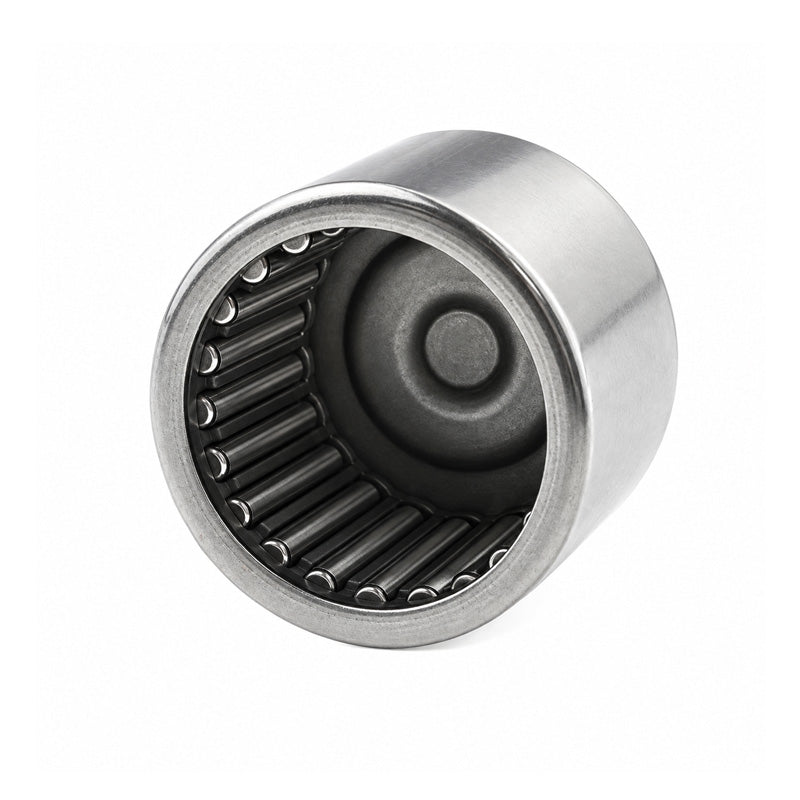

NTN BK2212 Drawn Cup Needle Roller Bearing with Closed End 22x28x12mm - Allow 2-3 Days

NTN BK2212 Drawn Cup Needle Roller Bearing with Closed End 22x28x12mm - Allow 2-3 Days
Regular price €5,60 ex VAT
Regular price Sale price €5,60 ex VAT
Sale Sold out

In stock

Price Break
3+ €4,74
4+ €4,55
9+ €4,45
19+ €4,31
49+ €4,22
99+ €3,98
499+ €3,35
999+ €0,00
1999+ €0,00
2999+ €0,00
4999+ €0,00
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
Fw - Under rollers diameter 22mm
D - Outside diameter 28mm
C - Width of bearing, drawn cup or outer ring 12mm
C1 - Max drawn cup closed end thickness 2.7mm
Lubrication hole on outer ring? No
Inner ring reference IR17X22X13
Cr - Dynamic load rating 9.75 kN
C0r - Static load rating 14.3 kN
N - Grease lubrication limit speed 7500 tr/min
N - Oil lubrication limit speed 11000 tr/min
Tmin - Minimum operating temperature -20 Deg C
Tmax - Maximum operating temperature +120 Deg C
